High Temperature Strip
Product Details

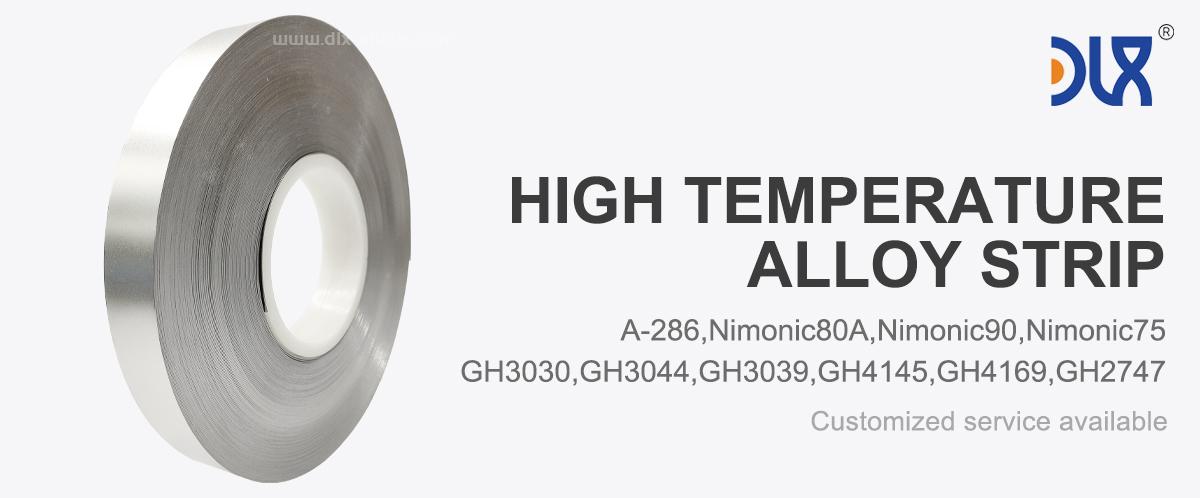

Nimonic 90 high temperature alloy strip is a high-performance nickel-chromium-cobalt superalloy specifically engineered for the most demanding aerospace applications. As one of the premier creep-resistant alloys, it is renowned for its exceptional high-temperature strength, oxidation resistance, and thermal fatigue properties. These characteristics make it the ideal material for turbine blades and other critical hot-section components in jet engines and gas turbines.
This advanced superalloy strip combines outstanding mechanical properties with long-term structural stability at temperatures up to 920°C (1688°F), outperforming many conventional nickel-based alloys under extreme operating conditions. Whether used in military, commercial, or industrial gas turbines, Nimonic 90 delivers reliable and consistent performance in environments subjected to high temperatures and stress.
Nimonic 90 offers a highly desirable combination of properties that make it the material of choice for turbine blades and other critical aerospace components:
Superior Creep Resistance: Maintains strength under continuous stress at high temperatures, making it ideal for high-pressure turbine stages.
Excellent Oxidation Resistance: Forms a stable protective Cr₂O₃ oxide layer at elevated temperatures, preventing corrosion and material degradation.
High Tensile Strength: Capable of sustaining tensile strength up to 1000 MPa (145 ksi) at room temperature, which ensures durability and performance over time.
Outstanding Thermal Fatigue Resistance: Withstands repeated thermal cycling, maintaining integrity even during rapid heating and cooling cycles.
Age-Hardenable: Strengthened through gamma prime (γ') precipitation hardening, enhancing its mechanical properties and durability.
Good Fabricability: The alloy strip can be forged, machined, and welded with proper techniques, making it suitable for complex turbine components.
Comparison Parameter Table
Item | A-286 | Nimonic80A | Nimonic 90 | GH4169 | |||
|---|---|---|---|---|---|---|---|
C | ≤0.08 | ≤0.1 | ≤0.13 | 0.06-0.12 | ≤0.1 | 0.05-0.15 | ≤0.08 |
Mn | ≤2 | ≤1 | ≤1 | ≤0.7 | 3.14-4.15 | -- | ≤0.35 |
Fe | rest | ≤3 | ≤1.5 | rest | ≤0.5 | -- | rest |
P | ≤0.04 | ≤0.02 | -- | ≤0.025 | -- | -- | -- |
S | ≤0.03 | ≤0.015 | ≤0.015 | ≤0.015 | -- | -- | ≤0.01 |
Si | ≤1 | ≤1 | ≤1 | ≤0.8 | -- | -- | ≤0.35 |
Cu | -- | -- | ≤0.2 | -- | -- | -- | ≤0.3 |
Ni | 24-27 | rest | -- | 35-40 | rest | rest | 50-55 |
Co | -- | ≤2 | 15-21 | -- | ≤1.00 | 0.5-2.5 | ≤1.00 |
Al | ≤0.35 | 1-1.8 | 1-2 | 0.2-0.6 | ≤0.4 | ≤0.5 | 0.2-0.8 |
Ti | 1.9-2.35 | 1.8-2.7 | 2-3 | 0.7-1.2 | ≤0.4 | ≤0.15 | 0.7-1.15 |
Cr | 13.5-16 | 18-21 | 18-21 | 20-23 | 20-23 | 20.5-23 | 17-21 |
Nb | -- | -- | -- | -- | -- | -- | 4.75-5.5 |
Mo | 1-1.5 | -- | -- | 2-2.5 | 8-10 | 8-10 | 2.8-3.3 |
B | 0.001-0.1 | ≤0.008 | ≤0.02 | -- | -- | -- | -- |
V | 0.1-0.5 | -- | -- | -- | -- | -- | -- |
W | -- | -- | -- | 1.4-1.8 | -- | 0.2-1 | -- |
Zr | -- | ≤0.15 | ≤0.15 | -- | -- | -- | -- |
Pb | -- | -- | ≤0.002 | -- | -- | -- | -- |
Ce | -- | -- | -- | ≤0.05 | -- | -- | -- |
Size Range | |
|---|---|
Wire | 0.5-7.5mm |
Rod/Bar | 8.0-200mm |
Strip | (0.50-2.5)*(5-180)mm |
Tube | custom made |
| Plate | custom made |
The Nimonic 90 alloy strip is primarily used in high-stress, high-temperature environments where performance and reliability are critical. Its key applications include:
Aircraft Turbine Blades (Critical Hot-Section Components)
Nimonic 90 is ideal for turbine blades in high-pressure stages of jet engines and industrial gas turbines. The alloy is especially beneficial for military aircraft engines requiring extreme reliability and performance under harsh conditions.
Performance Advantages:
Maintains strength at 850-920°C (1562-1688°F)
Resists creep deformation better than Inconel 718
Withstands thermal shock during rapid engine startups and shutdowns, making it ideal for high-performance engines that need quick temperature adjustments.
Turbine Disks and Shafts
Nimonic 90 is used in rotor assemblies where high centrifugal forces are present. Its excellent fatigue resistance ensures the structural integrity of these critical rotating components.
Exhaust System Components
This alloy is ideal for afterburner parts in military jets and nozzle guide vanes that require exceptional oxidation resistance at elevated temperatures.
High-Temperature Fasteners
Used in turbine casing bolts and combustor assembly hardware, Nimonic 90 helps maintain the required clamp load at high temperatures, ensuring the safety and reliability of turbine components.
Why Aerospace Manufacturers Choose Nimonic 90 Strip
Unmatched Creep Resistance for Turbine Applications
Nimonic 90 outperforms common alloys like Inconel 718 and Waspaloy in long-term creep strength at temperatures above 750°C (1382°F), making it the material of choice for critical turbine parts.
Superior Oxidation Resistance
The formation of a stable, self-healing oxide layer on Nimonic 90 protects the material from degradation caused by high-velocity combustion gases, ensuring long-term reliability in turbine engines.
Proven Reliability in Critical Components
With a proven track record in engines produced by Rolls-Royce, GE, and Pratt & Whitney, Nimonic 90 has been a trusted material for decades, offering unparalleled performance in aerospace applications.
Optimized Balance of Properties
Compared to other high-performance alloys, Nimonic 90 offers a better strength-to-weight ratio than many cobalt-based superalloys, providing manufacturers with an efficient and durable material for their designs.
Cost-Effective Performance
More economical than single-crystal superalloys, Nimonic 90 delivers 85-90% of the performance, making it a cost-effective solution for aerospace manufacturers without sacrificing quality or reliability.
Available Forms:
Precision cold-rolled strips (0.1-3.0mm thickness)
Hot-rolled plates and bars
Custom forgings for turbine components
Common Standards:
AMS 5798 (Aerospace Material Specification)
BS HR 5 (British Standard)
DIN 2.4632 (European Standard)
UNS N07090
Heat Treatment Options:
Solution annealing at 1080°C ±10°C
Aging treatment at 700-800°C for 16 hours

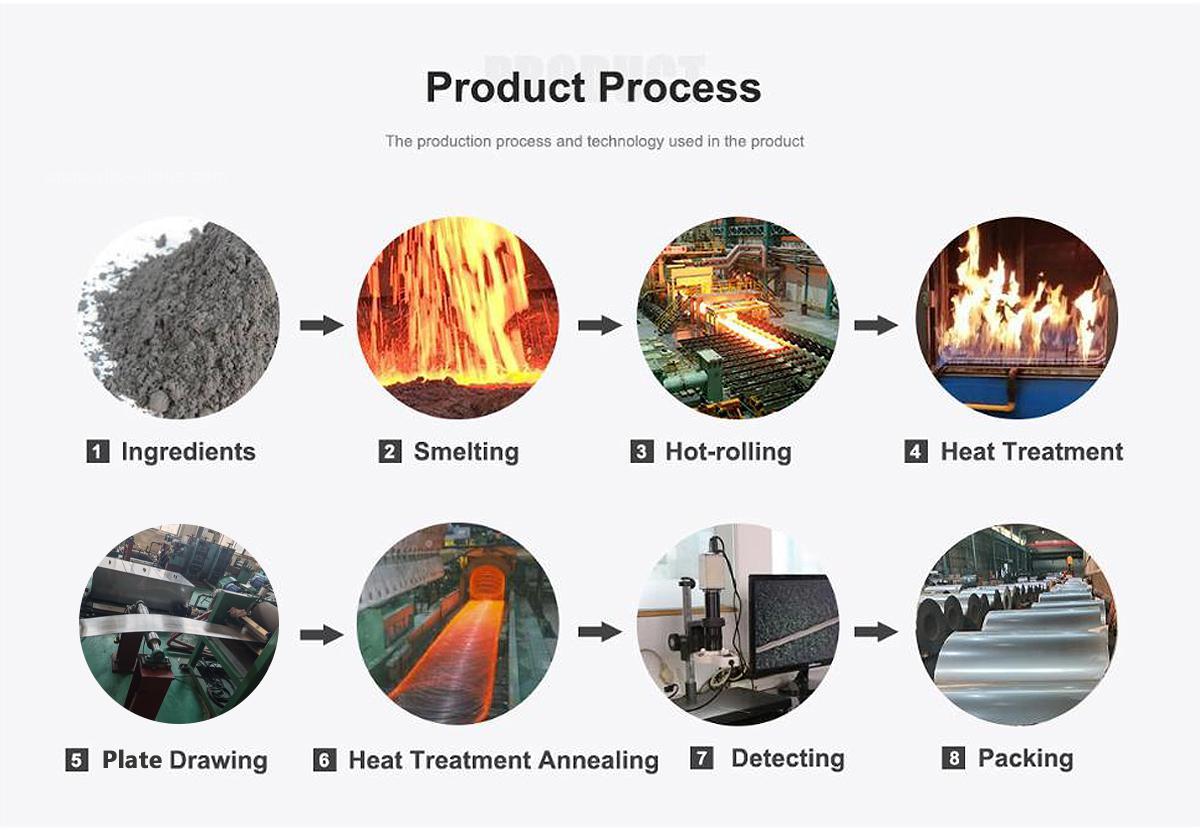

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, Precision Alloy , FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
FAQ
Q:What is the brand name of the High Temperature Alloy product?
A: The brand name of the product is DLX.
Q:What is the model number of the high-temperature alloy product?
A: The model number of the product is High Temperature Alloy.
Q:Where is the product made?
A: The product is made in China, Jiangsu.
Q:What is the expected delivery time for the product?
A: The expected delivery time for Nimonic 90 is typically 5-7 days.
