Product Description:
The Incoloy Alloy has a specific heat capacity of 470-500 J/kg-K. This means that it requires a significant amount of energy to raise its temperature. This makes it an ideal material for use in high-temperature applications where heat transfer is important. The Incoloy Alloy also has fair machinability, which means that it can be shaped and formed using standard machining techniques.
The Curie temperature of the Incoloy Alloy is -115°C. This is the temperature at which the alloy loses its magnetic properties. This makes it an ideal material for use in applications where magnetic interference is a concern. The Incoloy Alloy is available in both hard and soft conditions, allowing it to be used in a wide range of applications.
The Incoloy Alloy is made of high-quality materials that are designed to withstand high temperatures and resist corrosion. It is a popular choice among engineers and designers who need a reliable material for their projects. In addition, Inconel Special Metals is known for their high-quality alloy steel ingots. These ingots are made using the latest technology and are designed to meet the specific needs of their customers.
Features:
Product Name: Incoloy Alloy
Condition: Hard / Soft
Standard: ASTM B407
Shape: Tube
Curie Temperature: -115°C
Grade: Incoloy 901 / UNS N09901 / 2.4662
This Incoloy Alloy is a type of Alloy Steel Ingots, which is often used as an Alloy Agent in Steel. It is one of the Inconel Special Metals, known for its high resistance to corrosion and excellent mechanical properties.
Chemical Composition Requirement
| Item | 800 | 800H | 800HT | 825 | 925 |
|---|
| C | ≤0.1 | 0.05-0.1 | 0.06-0.1 | ≤0.05 | ≤0.03 |
| Mn | ≤1.5 | ≤1.5 | ≤1.5 | ≤1 | ≤1 |
| Fe | rest | rest | rest | rest | rest |
| P | -- | -- | -- | ≤0.02 | ≤0.03 |
| S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.03 | ≤0.03 |
| Si | ≤1 | ≤1 | ≤1 | ≤0.5 | ≤0.5 |
| Cu | ≤0.75 | ≤0.75 | ≤0.75 | 1.5-3 | 1.5-3 |
| Ni | 30-35 | 30-35 | 30-35 | 38-46 | 42-46 |
| Al | 0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.2-1 | 0.15-0.5 |
| Ti | 0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.6-1.2 | 1.9-2.4 |
| Cr | 19-23 | 19-23 | 19-23 | 19.5-23.5 | 19.5-23.5 |
| Mo | -- | -- | -- | 2.5-3.5 | 2.5-3.5 |
| Shape | Size (mm) |
|---|
| Wire | 0.5-7.5 |
| Rod/Bar | 8.0-200 |
| Strip | (0.5-2.5)*(5-180) |
| Tube/Pipe | Custom made |
| Sheet/Plate | Custom made |
| Product Form | Standard |
|---|
| Rod, bar & Wire | ASTM B805 |
| Plate, sheet & strip | ASTM B872 |
| Seamless pipe and tube | ASTM B983 |
| Forging | ASTM B637 |
Applications:
This alloy steel material is manufactured in China JiangSu and is made according to ASTM B407 standards. Its excellent corrosion resistance and high strength make it suitable for use in chemical processing, aerospace, and power generation industries.
The Incoloy Alloy from DLX is commonly used in applications such as furnace muffles, heat exchangers, and electric heating elements. Its specific heat capacity of 470-500 J/kg-K makes it an excellent choice for high temperature applications where thermal conductivity is important.
With fair machinability, this tube-shaped Incoloy Alloy is easy to work with and can be used in various scenarios. For instance, it can be used in the oil and gas industry for downhole applications, in chemical processing for heat exchangers, and in aerospace for engine components.
Overall, DLX's Incoloy Alloy is a versatile material that has a wide range of applications, thanks to its exceptional resistance to corrosion and high strength. Its ability to withstand high temperatures and harsh environments makes it an excellent choice for demanding industries that require high-performance materials.
Customization:
Product Customization Services for DLX Incoloy Alloy:
Brand Name: DLX
Model Number: Incoloy Alloy
Place of Origin: China JiangSu
Shape: Tube
Condition: Hard / Soft
Powder Or Not: Not Powder
Curie Temperature: -115°C
Modulus Of Elasticity: 193 GPa
Our Incoloy Alloy is made of Incoloy 800 material, an Inconel Nickel Alloy that provides excellent strength and resistance to high temperatures. We offer customization services to ensure that our customers receive the exact product they need for their specific application.
Support and Services:
The Incoloy Alloy product line offers excellent resistance to corrosion and high temperature environments. Our technical support team is available to assist with any questions or concerns regarding product selection, installation, and maintenance. We also offer a range of services including material testing, product customization, and on-site technical assistance. Our goal is to ensure that our customers receive the highest level of support and satisfaction throughout the lifetime of their Incoloy Alloy products.
Packing and Shipping:
Product Packaging:
The Incoloy Alloy product will be securely packaged in a sturdy cardboard box.
The box will be sealed with strong adhesive tape to prevent any tampering or damage during shipping.
Each product will be individually wrapped in bubble wrap to provide extra protection during transit.
Shipping:
The Incoloy Alloy product will be shipped via a trusted courier service.
The shipping cost will be calculated based on the weight and destination of the package.
Customers will receive a tracking number once the package has been shipped so they can monitor its progress.
Delivery times may vary depending on the destination, but we strive to ensure that packages arrive as quickly as possible.
ABOUT US
About DLX ALLOY

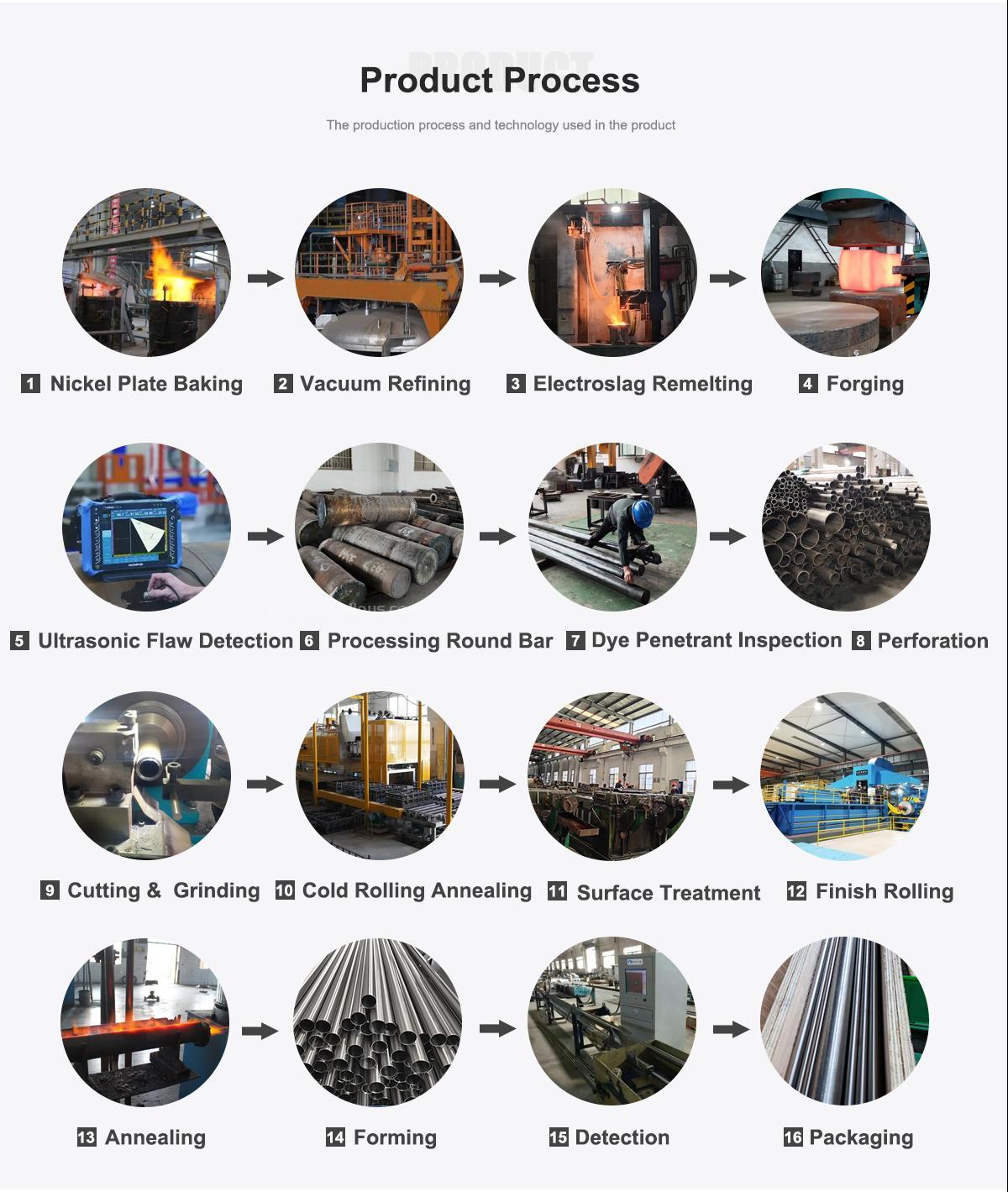

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, Precision Alloy , FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
About Our factory
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQ:
Q: What is the brand name of this product?A: The brand name of this product is DLX.
Q: What is the model number of this product?A: The model number of this product is Incoloy Alloy.
Q: Where is this product made?A: This product is made in China JiangSu.
Q: What are the typical applications of Incoloy Alloy?A: Incoloy Alloy is typically used in high temperature applications such as furnaces, heat exchangers, and petrochemical plants.
Q: What are the physical properties of Incoloy Alloy?A: Incoloy Alloy has a high resistance to corrosion and oxidation at high temperatures, good mechanical strength, and excellent weldability.
