Incoloy Alloy Rod

Incoloy 800HT Bar Low MOQ Good Price High-Temperature Resistance
Incoloy 800HT Bar Low MOQ Good Price High-Temperature Resistance
Incoloy 800HT Bar Low MOQ Good Price High-Temperature Resistance
Incoloy 800HT Bar Low MOQ Good Price High-Temperature Resistance

Incoloy 800HT Bar Low MOQ Good Price High-Temperature Resistance

Product Details

Incoloy 800HT rod banner

Incoloy 800H T rods are high-performance alloy products composed primarily of nickel, iron, and chromium, offering excellent resistance to oxidation and corrosion in high-temperature environments. Known for their durability and stability, these rods are widely used in various demanding industrial applications, especially in environments that require resistance to heat and corrosive substances.

Key Properties:

  • High-Temperature Resistance:
    Incoloy 800 HT rods maintain their structural integrity and strength at elevated temperatures, often exceeding 1,000°C, depending on the specific alloy grade.

  • Corrosion and Oxidation Resistance:
    The high content of chromium and nickel in Incoloy alloys gives them exceptional resistance to a wide range of corrosive environments, including acidic and oxidizing conditions.

  • Excellent Mechanical Strength:
    These rods feature high tensile and yield strength, which ensures long-lasting durability under mechanical stress, even in extreme environments.

  • Thermal Stability and Creep Resistance:
    Incoloy alloys are renowned for their ability to resist deformation (creep) and retain stability during prolonged exposure to high temperatures, ensuring reliable performance over time.

  • Weldability and Machinability:
    Incoloy rods are easy to weld and machine with standard techniques, making them suitable for various fabrication and construction requirements.

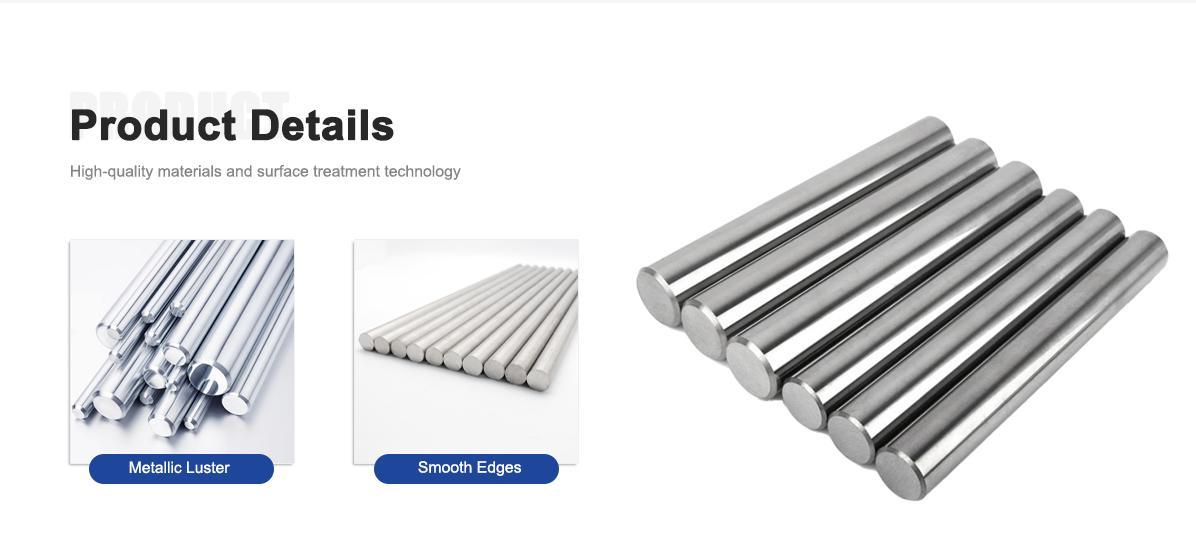

Incoloy 800HT rod details

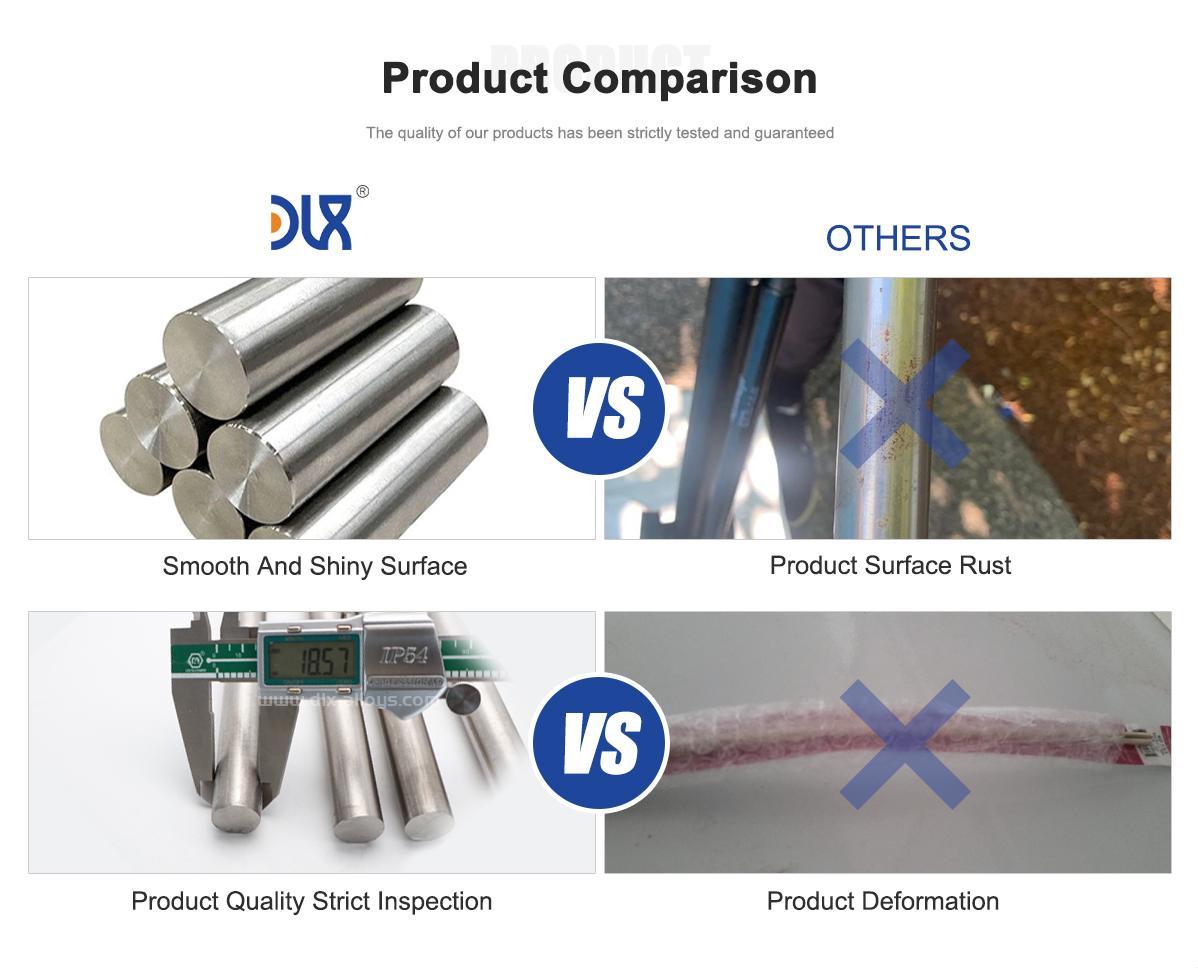

Incoloy 800HT rod comparison

Chemical Composition Requirement

Item

800

800H

800HT

825

925

C

≤0.1

0.05-0.1

0.06-0.1

≤0.05

≤0.03

Mn

≤1.5

≤1.5

≤1.5

≤1

≤1

Fe

rest

rest

rest

rest

rest

P

--

--

--

≤0.02

≤0.03

S

≤0.015

≤0.015

≤0.015

≤0.03

≤0.03

Si

≤1

≤1

≤1

≤0.5

≤0.5

Cu

≤0.75

≤0.75

≤0.75

1.5-3

1.5-3

Ni

30-35

30-35

30-35

38-46

42-46

Al

0.15-0.6

0.15-0.6

0.15-0.6

0.2-1

0.15-0.5

Ti

0.15-0.6

0.15-0.6

0.15-0.6

0.6-1.2

1.9-2.4

Cr

19-23

19-23

19-23

19.5-23.5

19.5-23.5

Mo

--

--

--

2.5-3.5

2.5-3.5

Shape

Size (mm)

Wire

0.5-7.5

Rod/Bar

8.0-200

Strip

(0.5-2.5)*(5-180)

Tube/Pipe

Custom made

Sheet/Plate

Custom made

Product Form

Standard

Rod, bar & Wire

ASTM B805

Plate, sheet & strip

ASTM B872

Seamless pipe and tube

ASTM B983

Forging

ASTM B637


Applications:

  • Petrochemical and Refining Industries:
    Incoloy alloy rods are used in equipment exposed to high temperatures, corrosive gases, and acidic environments such as furnace tubes, heat exchangers, and piping systems.

  • Power Generation:
    These rods are ideal for use in boiler components, nuclear reactors, and steam generators, where high heat resistance and mechanical strength are vital.

  • Aerospace Components:
    Incoloy rods are critical in the production of jet engines and exhaust systems, where they provide stability and resistance to corrosion in high-temperature, high-stress conditions.

  • Marine and Chemical Processing Equipment:
    Incoloy alloys are highly resistant to the aggressive environments of saltwater, brine, and various acids, making them perfect for valves, fittings, and other marine applications.

  • Oil and Gas Industry:
    These rods are commonly used in well tubing, casing, and completion equipment, providing resistance to sour gas and other extreme conditions often encountered in the oil and gas industry.

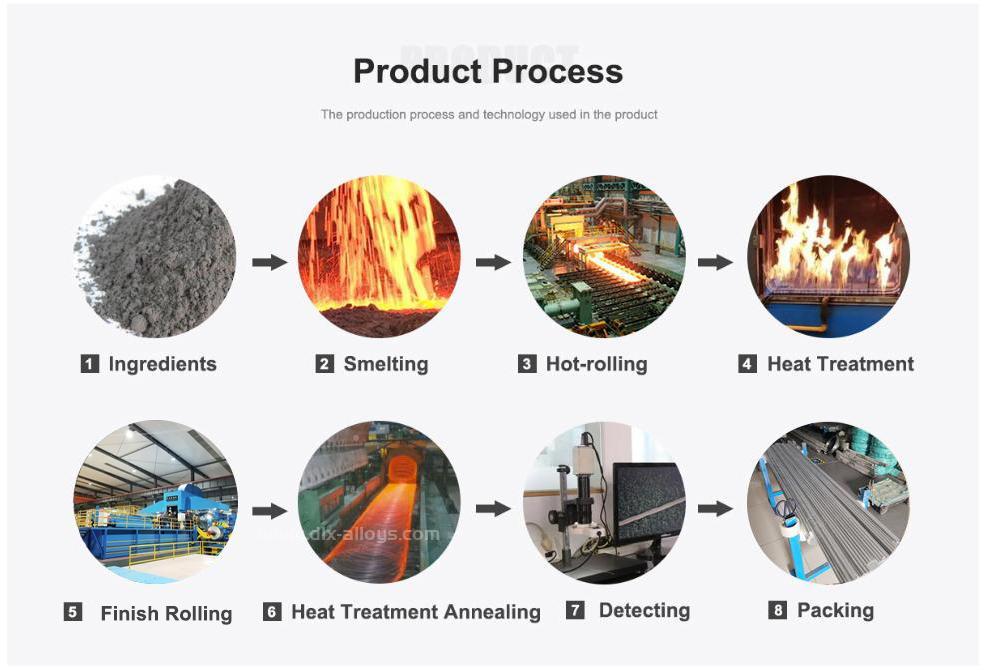

Incoloy 800HT rod process

Incoloy 800HT rod application field


Benefits:

  • Longevity and Durability:
    The high corrosion and heat resistance of Incoloy rods minimize the need for frequent maintenance and replacements, enhancing long-term reliability.

  • Enhanced Safety and Reliability:
    Incoloy alloy rods provide stability in extreme conditions, ensuring safer and more dependable operations in industrial environments.

  • Cost-Effectiveness in High-Performance Applications:
    Although initially more expensive, the extended service life of Incoloy alloys often leads to lower overall costs in high-temperature, corrosive applications.

Incoloy 800HT rod testing equipmentOEM Service

Recommended Products


  • ABOUT US
  • About DLX ALLOY
  • CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, Precision Alloy , FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.

  • CHANGZHOU DLX ALLOYCHANGZHOU DLX ALLOYCHANGZHOU DLX ALLOY

  • About Our factory
  • Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.

  • For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

  • CHANGZHOU DLX ALLOY

  • Client Visits

  • Building Stronger Partnerships

  • CHANGZHOU DLX ALLOY

  • We support all kinds of testing:
  • CHANGZHOU DLX ALLOY

FAQ:

Q1: What is Incoloy made of?
A1: Incoloy is a family of nickel-iron-chromium alloys designed specifically for high-temperature and corrosion-resistant applications.

Q2: What are the main advantages of using Incoloy rods?
A2: Incoloy rods offer exceptional corrosion resistance, high-temperature strength, durability, and versatility in fabrication, making them ideal for demanding environments.

Q3: In which industries are Incoloy rods commonly used?
A3: Incoloy rods are commonly used in chemical processing, aerospace, oil and gas, power generation, and marine industries.

Q4: Can Incoloy rods be welded?
A4: Yes, Incoloy rods can be easily welded and fabricated using standard welding techniques.

Q5: What temperature range can Incoloy rods withstand?
A5: Incoloy rods can withstand high temperatures, often exceeding 1000°F (538°C), depending on the specific alloy grade.

Q6: Are Incoloy rods resistant to stress corrosion cracking?
A6: Yes, Incoloy rods exhibit excellent resistance to stress corrosion cracking, making them suitable for use in harsh environments.

Q7: How should Incoloy rods be stored?
A7: Incoloy rods should be stored in a clean, dry environment, protected from corrosive substances to maintain their integrity.
