High temperature Alloy Tube
High-temperature alloys are widely used in the energy field. In high-parameter ultra-supercritical power generation boilers for coal-fired power generation, superheaters and re-superheaters must use high-temperature alloy pipes with good creep resistance, excellent oxidation resistance on the steam side and excellent corrosion resistance on the flue gas side; in gas turbines for gas-fired power generation, turbine blades and guide vanes need to use high-temperature alloys with excellent high-temperature corrosion resistance and long-term stable structure; in the field of nuclear power, steam generator heat transfer tubes must use high-temperature alloys with good solution corrosion resistance; in the field of coal gasification and energy conservation and emission reduction, high-temperature alloys with excellent resistance to high-temperature thermal corrosion and high-temperature abrasion are widely used; in oil and natural gas extraction, especially deep well extraction, the drilling tools are in an acidic environment of 4-150 ℃, and in the presence of CO2, H2S and mud, etc., corrosion-resistant and wear-resistant high-temperature alloys must be used

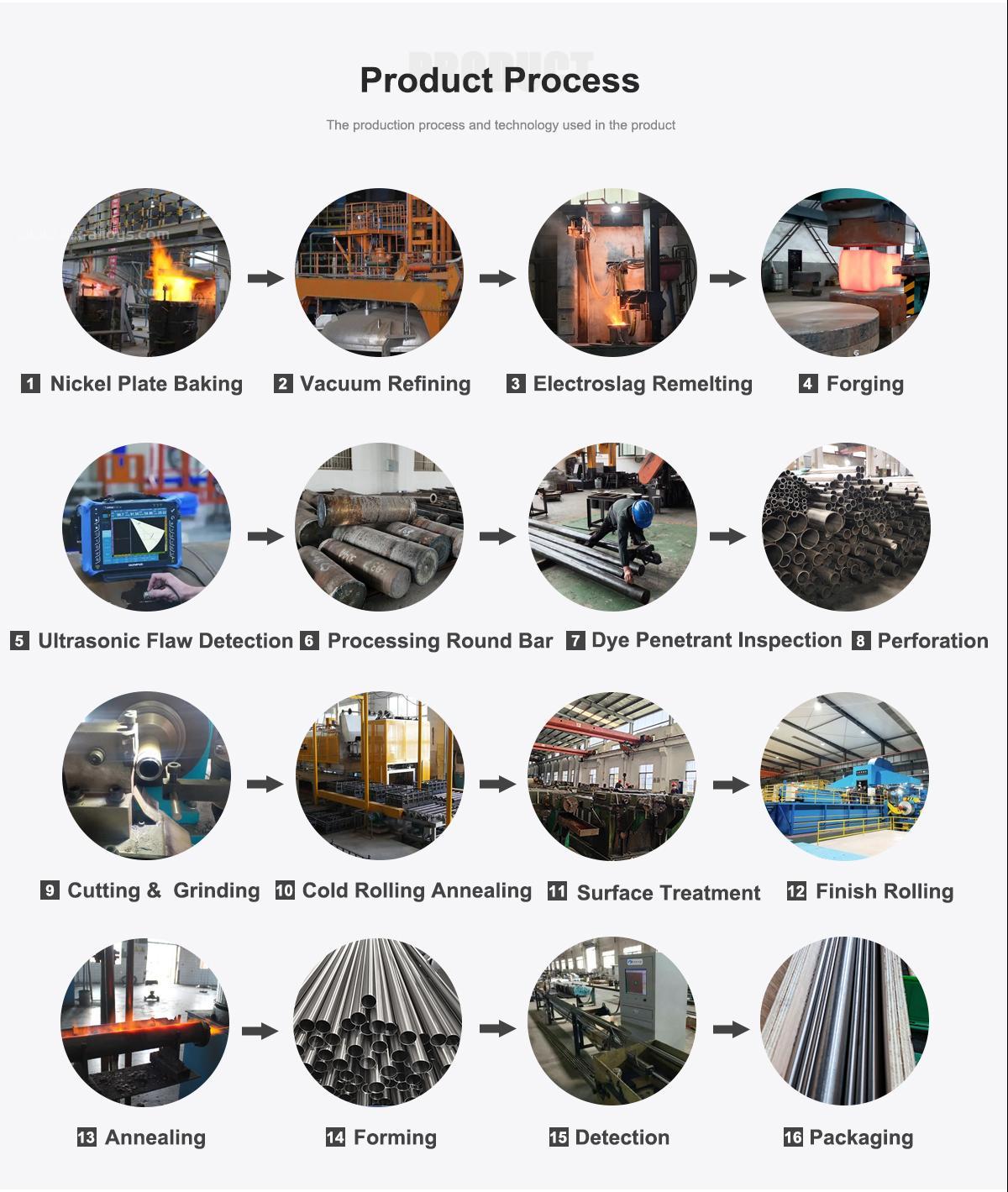

Manufacturing Process
Melting
The process begins with the melting of high-purity raw materials in an electric arc furnace or induction furnace. The molten metal is then refined to remove impurities and achieve the desired chemical composition.
Casting
After refining, the alloy is cast into ingots. These ingots are typically subjected to a homogenization heat treatment to eliminate segregation and enhance uniformity.
Forging
The ingots are then hot-forged at temperatures above 1100°C to achieve the desired shape and grain structure. This step is crucial as it refines the microstructure and improves the mechanical properties of the alloy.
Hot Rolling
Following forging, the material undergoes hot rolling to reduce the thickness and achieve the final dimensions of the bars. This process also enhances the directional properties of the alloy.
Annealing
To relieve internal stresses and improve ductility, the rolled bars are annealed at temperatures around 900-950°C. This step ensures the material is ready for final machining and use.
Finishing
The final step involves cutting the bars to the required lengths and applying any necessary surface treatments. This may include grinding, polishing, or coating to protect against environmental factors
GH3030 Chemical composition| C | Cr | Ni | Ti | Al | Fe | Mn | Si | P | S |
|---|
| ≤0.12 | 19.0~22.0 | Margin | 0.15~0.35 | ≤0.15 | ≤1.5 | ≤0.7 | ≤0.8 | ≤0.03 | ≤0.02 |
Applications of High-Temperature Alloy Tubes
High-temperature alloy tubes are used in industries where materials need to withstand extreme heat and corrosive environments. Their excellent resistance to oxidation, creep, and corrosion makes them ideal for:
Power Generation
Used in ultra-supercritical boilers, superheaters, and re-superheaters in coal-fired power plants, providing resistance to high steam temperatures and pressure.
Gas Turbines
Essential for turbine blades and guide vanes in gas-fired power generation, offering excellent high-temperature corrosion resistance.
Nuclear Power
Used in steam generators and heat transfer tubes, providing superior solution corrosion resistance for safe operation in nuclear reactors.
Coal Gasification & Energy Conservation
Employed in coal gasification plants and energy systems to resist high-temperature thermal corrosion and abrasion.
Oil and Gas Extraction
Applied in drilling tools for deep well extraction, where they withstand aggressive conditions like CO2, H2S, and high temperatures.
Our Advantage
Market Leader
Top 5 in China's nonferrous metal industry
Flexible products
Thousands of product specifications,Meet multiple needs of buyers
Low MOQ
Can customize samples
Short production lead time，fast delivery of whole cabinet
Professional inspection equipment
Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
Professional business team
Quickly responds to customer inquiries,24-hour professional quotation online
The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
Intact packaging
Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
Various payment methods
Facilitate customer payment
Get good reviews from customers
Old customers have long-term cooperation,The longest is more than 7 years
Received various awards
Google is very recognized by us,They give us awards every year
ABOUT US
About DLX ALLOY
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, Precision Alloy , FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
About Our factory
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQ
Q:How can I contact with your company?
A:We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile phone.
Phone:+86-13218687867
Whatsapp:+86-13218687867
Email: sales18@dlx-alloy.com
Q:What is your working time?
A:Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,please see our update holiday notice.
During these period, if you have a demand, Please send me an email.
Q:Do you provide free samples?
VYes, we can provide a free sample for testing,buyer should bear all the shipping costs.
Q:What is your payment terms?
A:T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
Q:What is the lead time?
A:Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
