Wholesale High Temperature Alloy Bar Rod Nimonic 80A Nicrofer 7520 Ti Pyromet 80A Superimphy 80A

Product Information

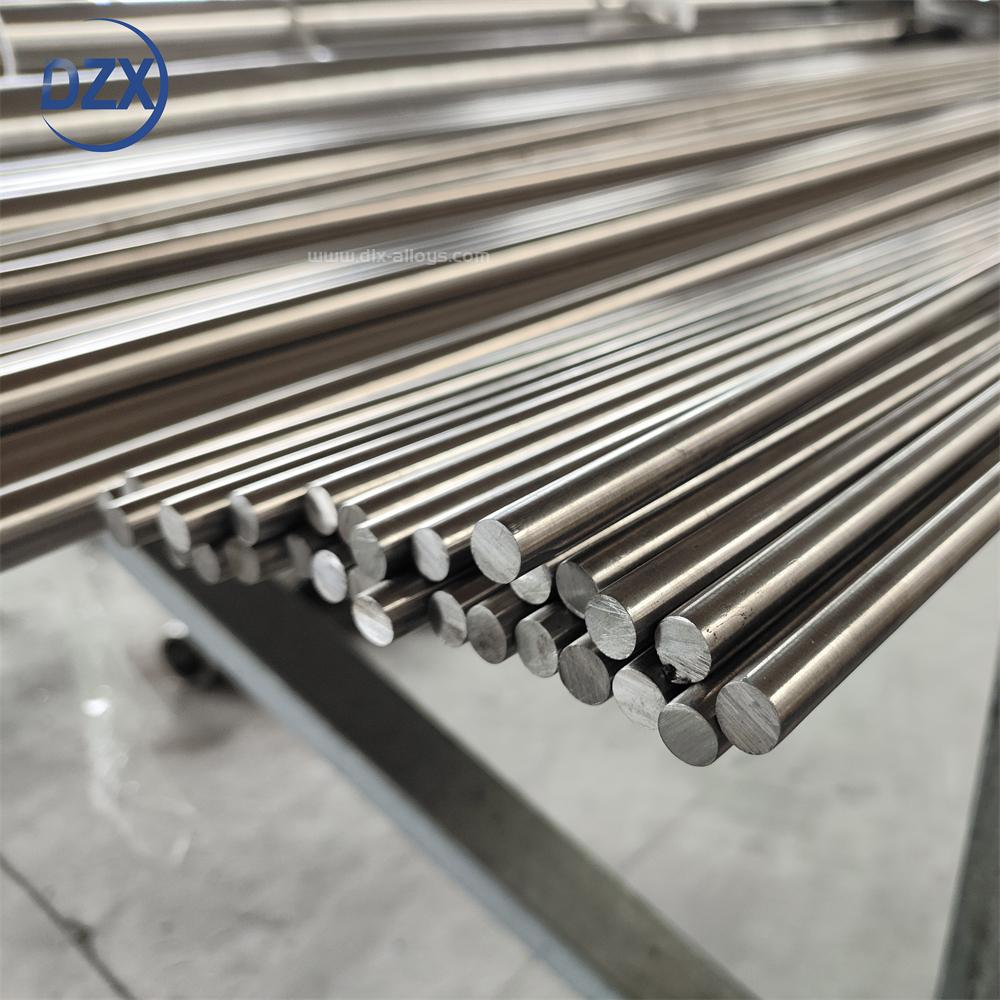

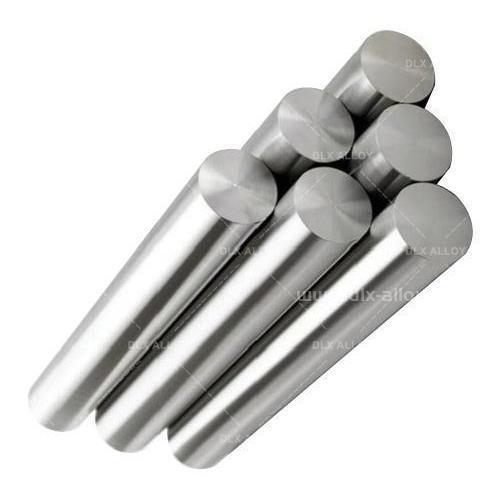

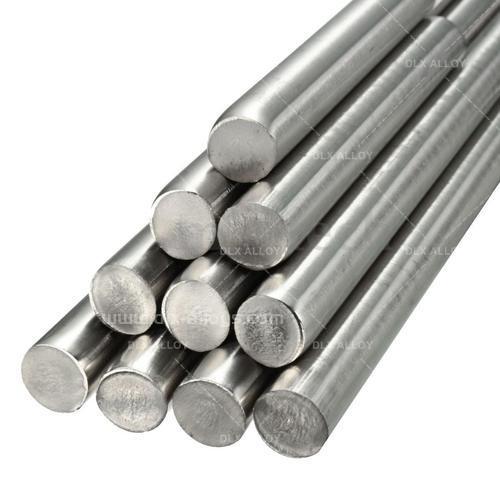

High Temperature Alloy Bar Rod Nimonic 80A is a high-performance nickel-based superalloy product widely used in extreme temperature environments. It is also known as Nimonic 80A Bar, UNS N07080 Rod, or Alloy 80A Round Bar. Made primarily of nickel and chromium with controlled additions of titanium and aluminum, Nimonic 80A offers outstanding strength, excellent oxidation resistance, and superior creep resistance at elevated temperatures. The product typically appears in a bright metallic silver color, with smooth surfaces. Common sizes range from 8mm to 150mm in diameter, and custom sizes can be produced upon request. It is manufactured according to standards such as ASTM B637 and AMS 5829.

Characteristics

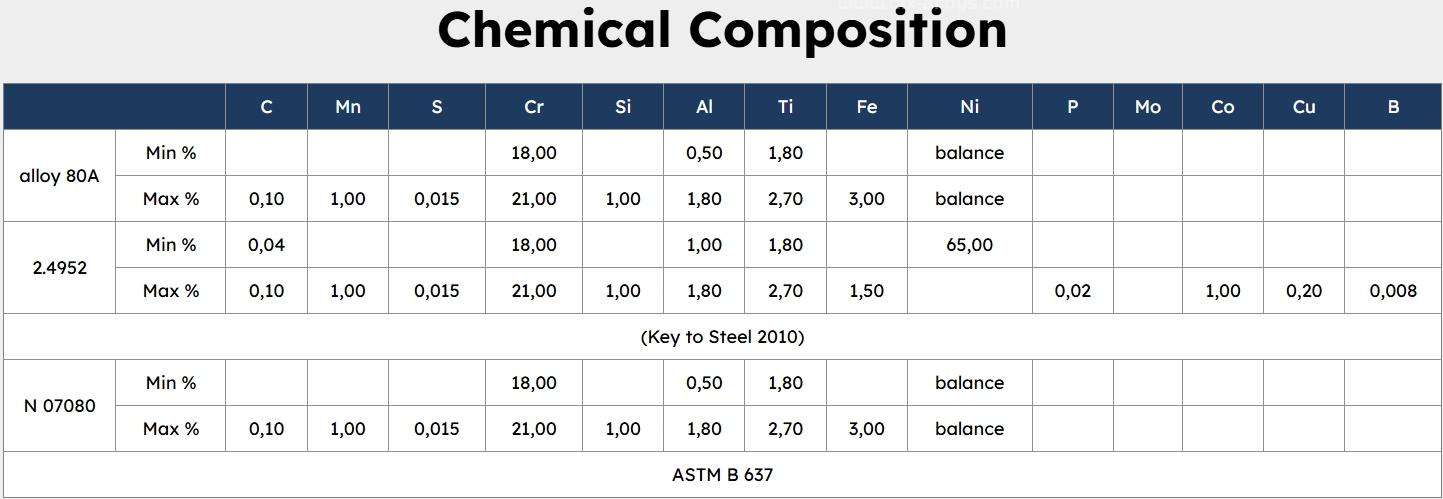

• Material Composition: Approx. 76% Nickel, 19.5% Chromium, 2.3% Titanium, 1.4% Aluminum

• Color: Metallic silver

• Surface Finish: Bright, smooth, polished, or ground

• Mechanical Properties: High tensile strength, excellent creep-rupture properties

• Temperature Resistance: Operates effectively at temperatures up to 815°C (1500°F)

• Corrosion Resistance: Good oxidation and corrosion resistance in high-temperature environments

• Available Forms: Bars, rods, billets, forged sections

• Diameter Range: Standard 8mm to 150mm, customized sizes available

Technology

Nimonic 80A bar rods are manufactured through vacuum induction melting (VIM) followed by vacuum arc remelting (VAR) to achieve high purity and uniform microstructure. Advanced forging and heat treatment processes are employed to optimize mechanical properties such as strength and creep resistance. Final machining and surface finishing processes ensure excellent dimensional accuracy, a smooth surface, and superior performance in demanding applications.

Theory

Nimonic 80A functions based on the principle of precipitation strengthening. During heat treatment, the controlled amounts of titanium and aluminum form gamma prime (γ') precipitates in the nickel matrix, significantly enhancing high-temperature strength. The chromium content provides oxidation and corrosion resistance, while the nickel base ensures stability under thermal cycling. This combination of mechanisms makes Nimonic 80A ideal for use in aggressive, high-stress environments.

Application

1. Aerospace Industry:
   Used for turbine blades, rings, and other engine components requiring high temperature strength and oxidation resistance.

2. Power Generation:
   Applied in industrial gas turbines, high-temperature bolting, and combustion chambers due to its excellent creep and rupture strength.

3. Automotive Industry:
   Utilized in exhaust valves and turbocharger components that are exposed to high thermal stresses.

Different names based on usage:

• Nimonic 80A Aerospace Bar

• UNS N07080 Power Plant Rod

• Alloy 80A Automotive Rod

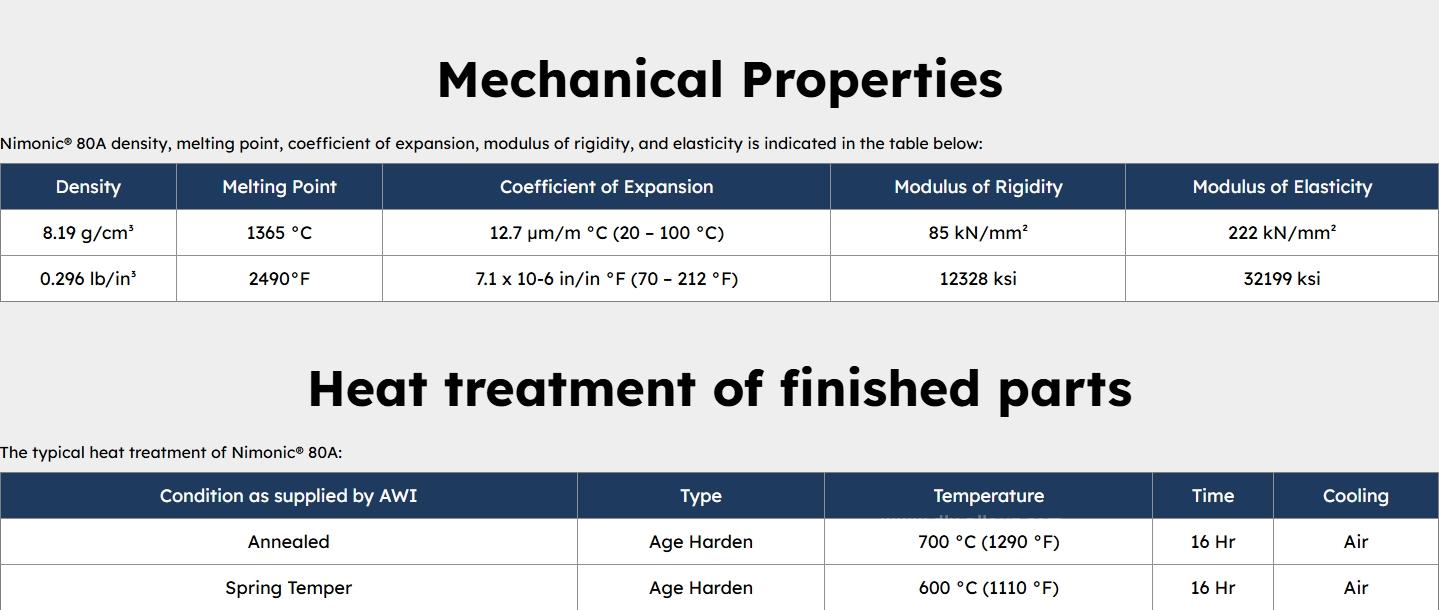

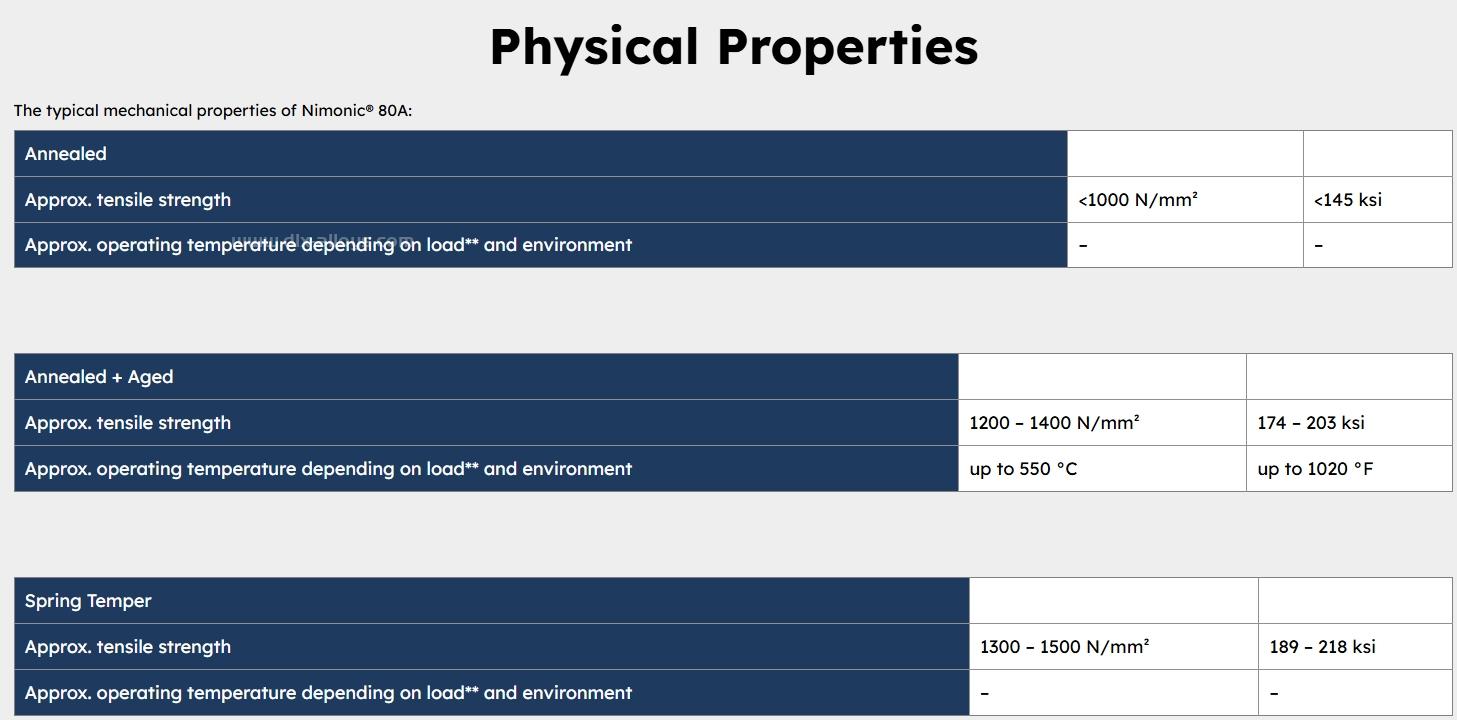

Specification Table

Advantages

• High Temperature Strength: Maintains mechanical properties up to 815°C, ideal for critical high-temperature applications.

• Excellent Oxidation Resistance: Protects against surface degradation at elevated temperatures.

• Superior Creep Resistance: Outstanding creep-rupture properties extend the lifespan of components under stress.

• Versatile Applications: Suitable for aerospace, power generation, and automotive industries.

• Customizable Options: Diameter, length, and surface finish can be tailored to specific project requirements.

• Reliable Quality: Produced under strict quality control with certifications available upon request.

Service

• Customization Service: We offer custom bar sizes, tailored mechanical properties, and specific surface finishes to meet customer demands.

• Technical Support: Our professional team provides comprehensive guidance on material selection, machining advice, and heat treatment procedures.

• Prompt Delivery: Standard sizes are available from stock, and special orders are processed quickly.

• Quality Assurance: Each batch undergoes rigorous testing, including chemical analysis, mechanical testing, and surface inspection.

• After-Sales Service: Dedicated after-sales support to assist with technical issues, documentation, and application optimization.
