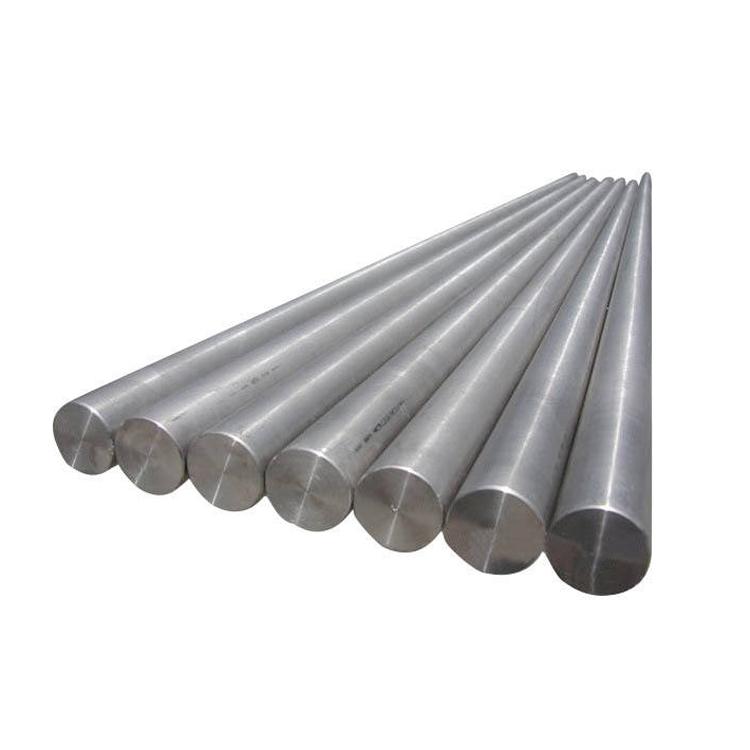

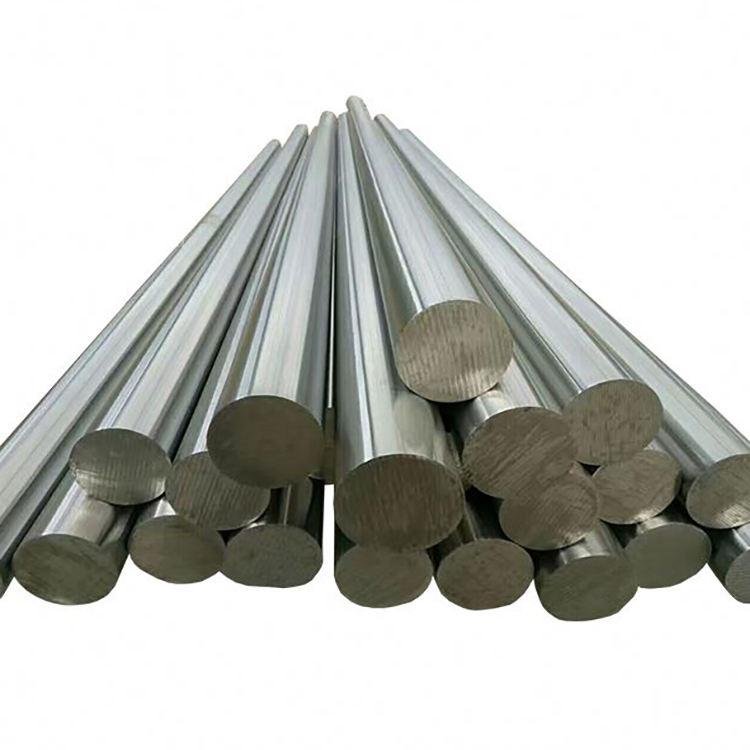

Premium Incoloy 825 Alloy Bar for Chemical Processing and Corrosion Resistant Applications

‌1. Product Information‌

‌Product Name‌: Incoloy 825 Bar (Corrosion-Resistant Grade)
‌Material Type‌: Nickel-Iron-Chromium-Molybdenum Superalloy (Austenitic Structure)
‌Standards‌: ASTM B425, ASME SB425, UNS N08825, DIN 2.4858
‌Forms Available‌: Hot-rolled bars, cold-drawn precision bars, and forged bars.
‌Diameter Range‌: 10 mm to 300 mm (custom sizes up to 500 mm).
‌Surface Finish‌: Pickled, ground (Ra ≤ 0.8 μm), or electropolished.
Operating Temperature‌:

• Continuous service: Up to 540°C (1000°F)

• Short-term exposure: 815°C (1500°F)

Certifications‌: NACE MR-0175/ISO 15156, ASME BPV Code Section VIII, PED 2014/68/EU.

‌2. Characteristics‌

Incoloy 825 bars excel in aggressive acidic and chloride-rich environments:

• ‌Pitting/Stress Corrosion Resistance‌: Critical pitting temperature (CPT) >85°C in 6% FeCl₃ per ASTM G48.

• ‌Sulfuric Acid Resistance‌: Corrosion rate <0.1 mm/year in 50% H₂SO₄ at 65°C (per ASTM G31).

• ‌Chloride Ion Tolerance‌: Withstands >10,000 ppm Cl⁻ in seawater without crevice corrosion.

• ‌Hydrogen Embrittlement Immunity‌: No cracking after 200-hour testing in H₂S-saturated brine (NACE TM0177).

• ‌Phase Stability‌: No sigma phase formation after 10,000 hours at 550°C.

• ‌Weldability‌: Compatible with TIG and MIG welding (ERNiCrMo-3 filler recommended).

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Triple Melt Process (VIM + ESR + VAR)‌: Reduces S < 0.005%, O₂ < 20 ppm.

• ‌Controlled Rolling‌: At 950–1100°C to achieve ASTM grain size 5-7.

• ‌Heat Treatment‌:

• Solution annealing at 980–1030°C (1800–1900°F) with water quenching.

• Stabilization at 720°C (1330°F) for 4 hours to precipitate TiC carbides.
  ‌Quality Control‌:

• Intergranular corrosion testing per ASTM G28 Method A.

• Eddy current testing for surface defects (sensitivity ≤0.1 mm).

• Hydrogen charging tests for oil/gas compliance.

‌4. Theory‌

The alloy’s corrosion resistance is rooted in its metallurgical design:

• ‌Molybdenum-Copper Synergy‌: Mo provides pitting resistance in Cl⁻ environments, while Cu enhances reducing acid (H₂SO₄, HCl) resistance.

• ‌Titanium Stabilization‌: Ti combines with residual C to form TiC, preventing Cr-depletion at grain boundaries.

• ‌Nickel Matrix Dominance‌: High Ni content (>40%) ensures stability in both oxidizing and reducing media.

• ‌Passive Layer Formation‌: Cr₂O₃-MoO₃ oxide film with self-healing capability in pH 2–12 environments.

‌5. Application‌

Incoloy 825 bars are indispensable in corrosive industrial systems:

• ‌Oil & Gas‌:

• Downhole tubing hangers, subsea Christmas tree components, and sour gas scrubbers.

• ‌Chemical Processing‌:

• Reactor agitators for sulfuric acid alkylation, phosphoric acid evaporators, and HCl storage systems.

• ‌Marine Engineering‌:

• Seawater-cooled heat exchangers, desalination plant brine heaters, and offshore platform risers.

• ‌Pollution Control‌:

• Flue gas desulfurization (FGD) system dampers and scrubber internals.

•


6. Parameters
