Premium Incoloy 800 High Temperature Alloy Wire for Heat Exchanger and Furnace Applications

1. Product Information‌

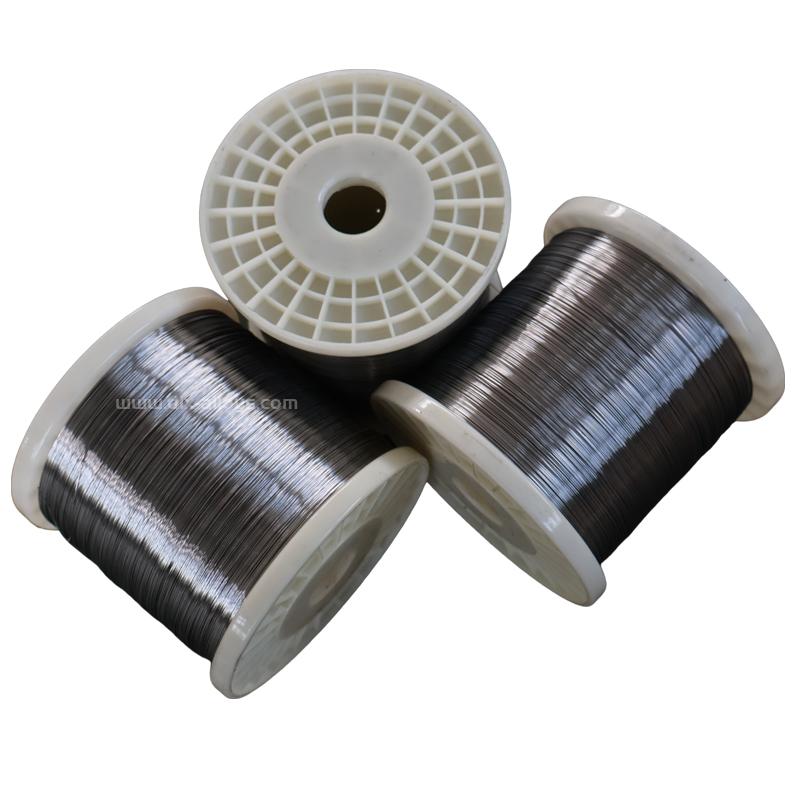

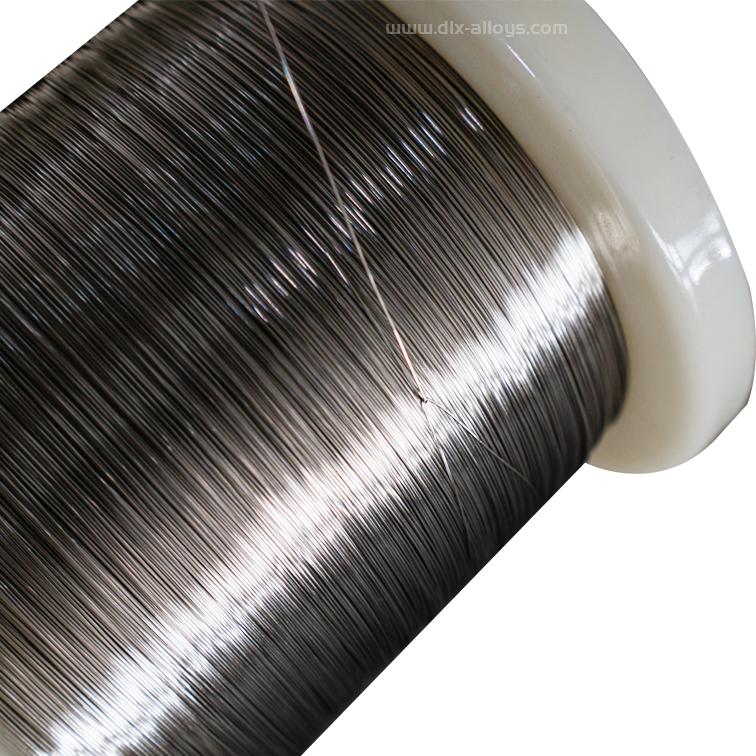

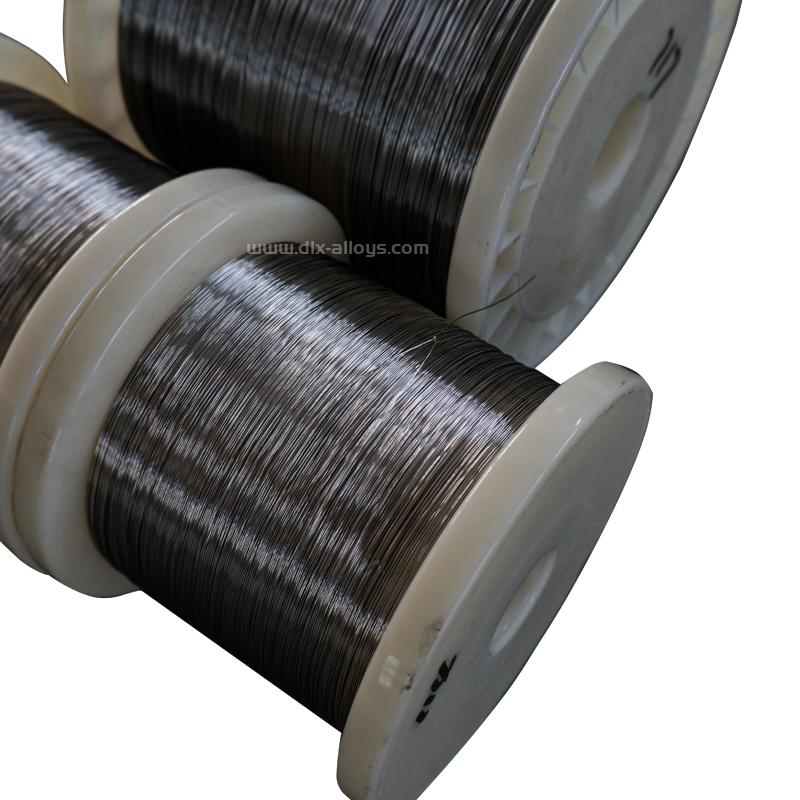

‌Product Name‌: Incoloy 800 Wire
‌Material Type‌: Nickel-Iron-Chromium Superalloy
‌Standards‌: ASTM B408, ASTM B409, AMS 5766, DIN 2.4858

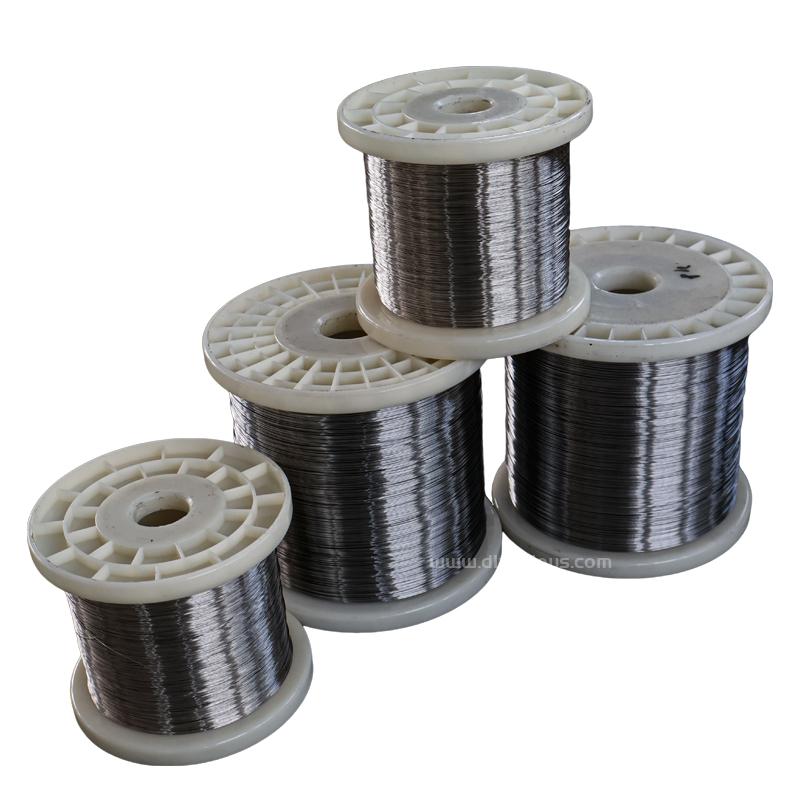

‌Forms Available‌: Round wire, flat wire, spooled wire, and custom profiles.
‌Diameter Range‌: 0.1 mm to 12.7 mm (customizable upon request).
‌Surface Finish‌: Bright annealed, pickled, or polished.
‌Operating Temperature‌: -200°C to 800°C (short-term), with optimal performance at 540-760°C.

‌Certifications‌: Compliant with NACE MR-0175 for sour service environments.

‌2. Characteristics‌

Incoloy 800 wire is engineered for extreme environments, offering a unique combination of properties:

• ‌High-Temperature Stability‌: Maintains tensile strength and creep resistance up to 800°C due to its austenitic structure.

• ‌Oxidation & Carburization Resistance‌: Forms a protective Cr₂O₃ oxide layer at elevated temperatures, resisting scaling and carbon absorption.

• ‌Corrosion Resistance‌: Excellent resistance to sulfuric acid, nitric acid, alkaline solutions, and chloride-induced stress corrosion cracking.

• ‌Mechanical Strength‌: Typical tensile strength of 500-700 MPa (annealed condition) with elongation exceeding 30%.

• ‌Fabrication Flexibility‌: Easily cold-worked, welded (TIG, MIG), and machined using standard tooling.

• ‌Thermal Cycling Resistance‌: Low coefficient of thermal expansion (14.4 μm/m·°C at 20–100°C) minimizes distortion under cyclic heating.

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Melting‌: Vacuum induction melting (VIM) ensures precise control over impurities (e.g., sulfur, phosphorus).

• ‌Hot/Cold Working‌: Hot-rolled billets are cold-drawn through diamond dies to achieve tight dimensional tolerances (±0.01 mm).

• ‌Heat Treatment‌: Solution annealing at 980-1030°C followed by rapid quenching to stabilize the microstructure.

• ‌Surface Treatment‌: Bright annealing in hydrogen atmosphere to prevent oxidation and enhance surface finish.

‌Quality Control‌:

• Spectrochemical analysis for composition verification.

• Non-destructive testing (eddy current) for surface defects.

• Mechanical testing (hardness, tensile) per ASTM E8/E21 standards.

‌4. Theory‌

Incoloy 800 derives its performance from advanced metallurgical principles:

• ‌Solid Solution Strengthening‌: High Ni content stabilizes the FCC austenitic matrix, enhancing ductility and fracture toughness.

• ‌Chromium Oxide Layer‌: Cr reacts with oxygen to form a self-healing Cr₂O₃ layer, providing continuous protection against oxidation.

• ‌Precipitation Hardening‌: Controlled additions of Al and Ti promote fine (Ti,Al)C carbides at grain boundaries, improving creep resistance.

• ‌Thermodynamic Stability‌: The Ni-Fe-Cr ternary system minimizes σ-phase embrittlement and retains phase stability under prolonged thermal exposure.

‌5. Application‌

Incoloy 800 wire is widely used in industries demanding reliability under aggressive conditions:

• ‌Petrochemical‌: Wire mesh for catalyst grids, furnace internals, and reformer tubes in hydrogen sulfide environments.

• ‌Power Generation‌: Heating element windings, thermocouple sheaths, and boiler tube supports in coal-fired and nuclear plants.

• ‌Aerospace‌: Combustion chamber liners, exhaust seals, and afterburner components.

• ‌Heat Treatment‌: Basket fixtures and conveyor belts for annealing/carburizing furnaces.

• ‌Chemical Processing‌: Fasteners, springs, and gaskets in nitric acid production equipment.

•
