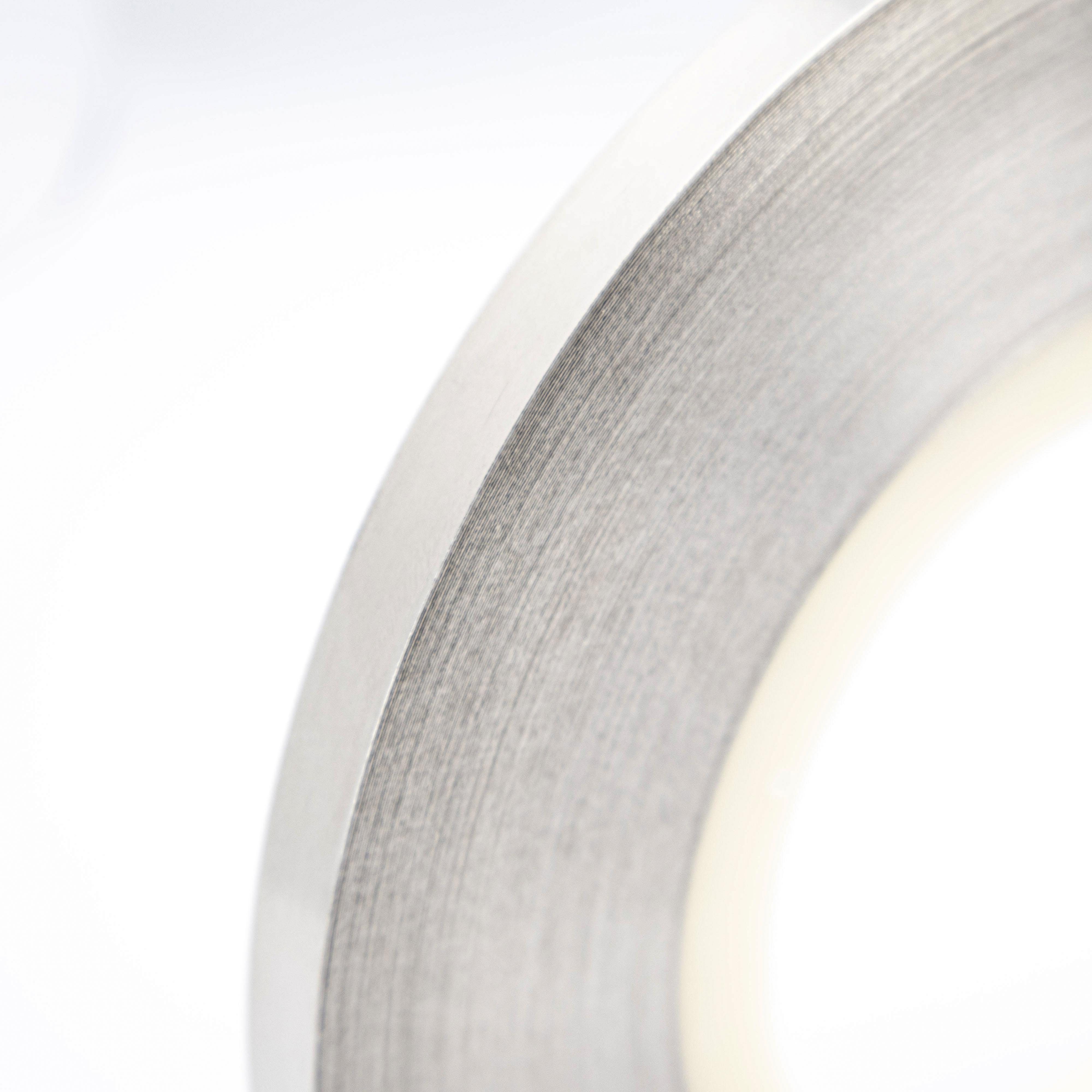

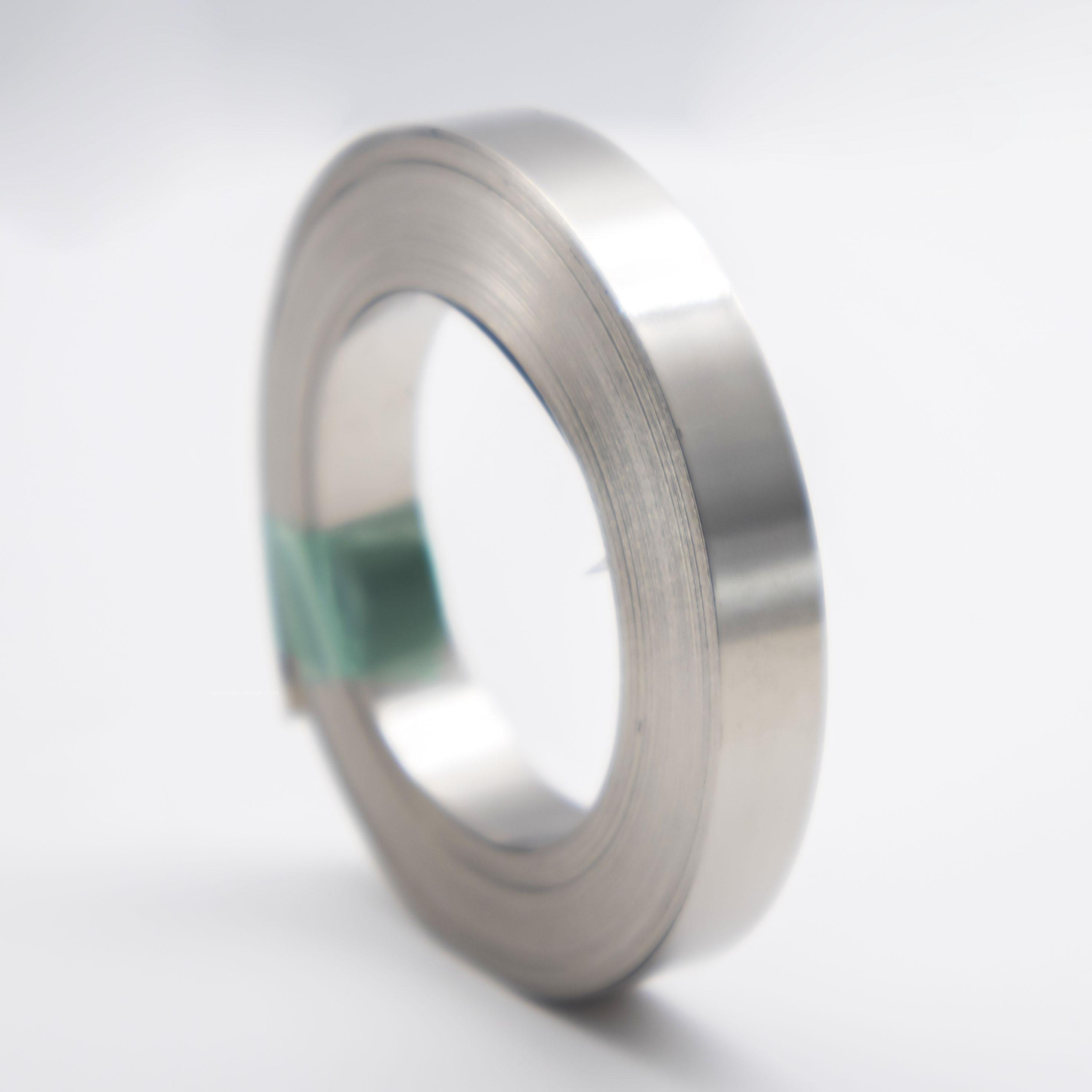

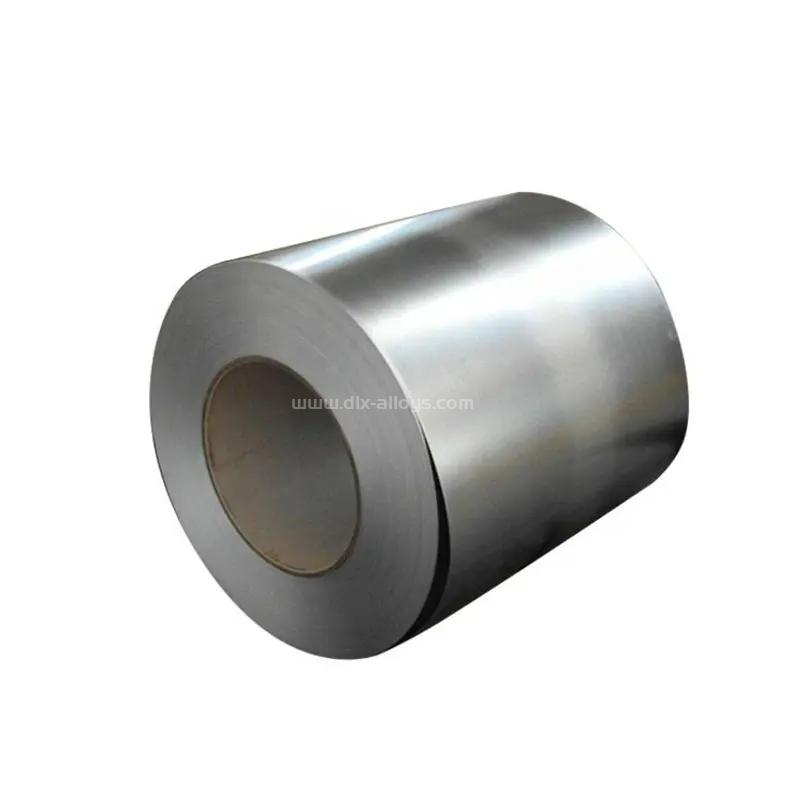

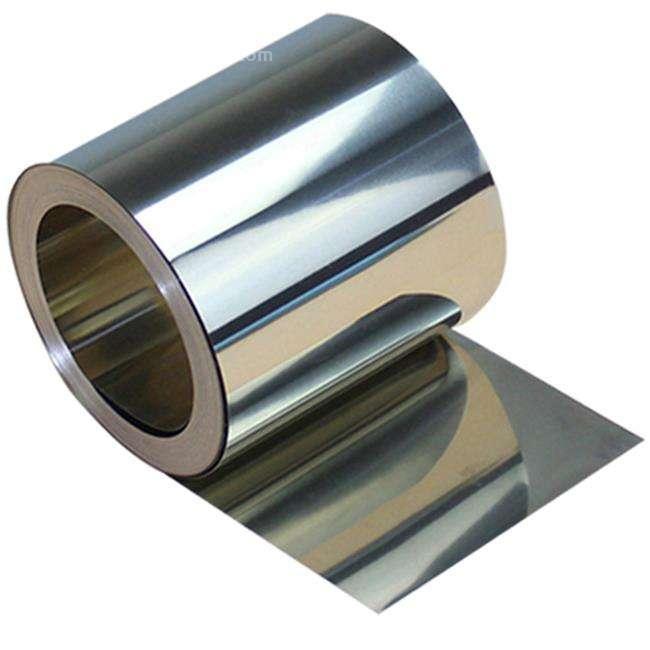

Incoloy 925 High Performance Alloy Strip for High-Temperature and Corrosion-Resistant Applications

1. Product Information‌

• ‌Alloy Designation‌: Incoloy 925 (UNS N09925 / W.Nr. 2.4852)

• ‌Certifications‌:
  NACE MR0175/ISO 15156-3 (Sulfide Stress Corrosion Cracking), API 6ACRA

• ‌Chemical Composition‌ (wt%):
  Ni 42-46%, Cr 19.5-23.5%, Mo 2.5-3.5%, Cu 1.5-3.0%, Ti 1.9-2.4%, Al 0.1-0.5%, C ≤0.03%, Fe Balance

• ‌Dimensional Specifications‌:
  Thickness: 0.2–15 mm (±0.4% or ±0.01 mm), Width: 50–1,500 mm (longitudinal bow ≤0.3 mm/m)

• ‌Supply Conditions‌:
  Solution annealed (1,040°C ±15°C, water quench), aged (620°C/8h, air cool), or cold-rolled (H1150M temper)

‌2. Key Characteristics‌

• ‌Extreme Corrosion Resistance‌:

• Resistance to H₂S stress corrosion cracking (SSC) at 150°C/20% NaCl, threshold stress ≥80% AYS (per NACE TM0177 Method A).

• Pitting Resistance Equivalent Number (PREN) = 38.5 (Cr + 3.3Mo + 16N).

• ‌Mechanical Strength‌:

• Aged condition: Tensile strength ≥1,000 MPa, yield strength ≥750 MPa, elongation ≥15%.

• Impact toughness: 75 J at -46°C (ASTM E23).

• ‌Thermal Stability‌:

• Retains 85% yield strength after 1,000h exposure at 400°C in sour gas environments.

• ‌Fatigue Performance‌:

• Fatigue strength (R=-1): 450 MPa at 10⁶ cycles (ASTM E466).

‌3. Advanced Manufacturing Technology‌

• ‌Triple Melt Process‌:
  VIM + ESR + VAR refining ensures ultra-low impurities:

• Oxygen ≤15 ppm, sulfur ≤0.001%, non-metallic inclusions ≤0.5% area fraction.

• ‌Precision Rolling‌:

• Cryogenic rolling at -50°C enhances dislocation density, achieving nano-twinned structures (spacing 10-50 nm).

• Eddy current sensors monitor residual stress (±50 MPa uniformity).

• ‌Surface Treatment‌:

• Electropolishing (Ra ≤0.1 μm) or HVOF-sprayed WC-10Co-4Cr coating (800-1,200 HV).

• ‌Heat Treatment‌:

• Two-stage aging: 720°C/8h + 620°C/8h for optimal γ' (Ni₃(Ti,Al)) precipitation.

‌4. Material Science Principles‌

• ‌Precipitation Strengthening‌:

• ‌γ' Phase Control‌: Ti/Al ratio maintained at 4.5-5.0 to form coherent Ni₃(Ti,Al) precipitates (size 10-30 nm, volume fraction 18-22%).

• ‌Secondary Phases‌: MC carbides (TiC, NbC) at grain boundaries suppress intergranular corrosion.

• ‌Corrosion Protection Mechanism‌:

• Mo-Cu synergy creates a self-repairing passive film (MoO₄²⁻/Cu₂O layer) under chloride attack.

• Nickel matrix maintains stability in reducing acids (HCl, H₂S) via thermodynamic immunity.

• ‌Hydrogen Embrittlement Mitigation‌:

• TiN particles act as hydrogen traps, reducing diffusible hydrogen content to <0.5 ppm.

‌5. Critical Applications‌

• ‌Oil & Gas Extraction‌:

• Downhole tool components (sour wells with H₂S >5%, CO₂ partial pressure >10 MPa).

• Subsea Christmas tree valves (30-year design life in seawater + H₂S environments).

• ‌Chemical Processing‌:

• Reactor internals for HCl acid regeneration (concentration up to 33%, 180°C).

• Flue gas desulfurization (FGD) system dampers (pH 1-3, 80°C wet-dry cycling).

• ‌Marine Engineering‌:

• Seawater pump shafts (resistant to cavitation erosion, ASTM G32 mass loss <0.1 g/h).

• Offshore platform tensioner systems (fatigue life >2×10⁷ cycles @ 200 MPa).

• ‌Nuclear Waste Management‌:

• Spent fuel reprocessing vessel liners (resistant to HNO₃ + HF mixtures at 90°C).

• ‌Specialty Manufacturing‌:

• Geothermal wellhead connectors (H₂S/CO₂/Cl⁻ multi-threat corrosion resistance).

• Hydrogen compressor valve plates (1,500 bar cyclic loading, hydrogen permeation <1×10⁻¹⁰ mol/m·s·Pa)

6. Parameters
