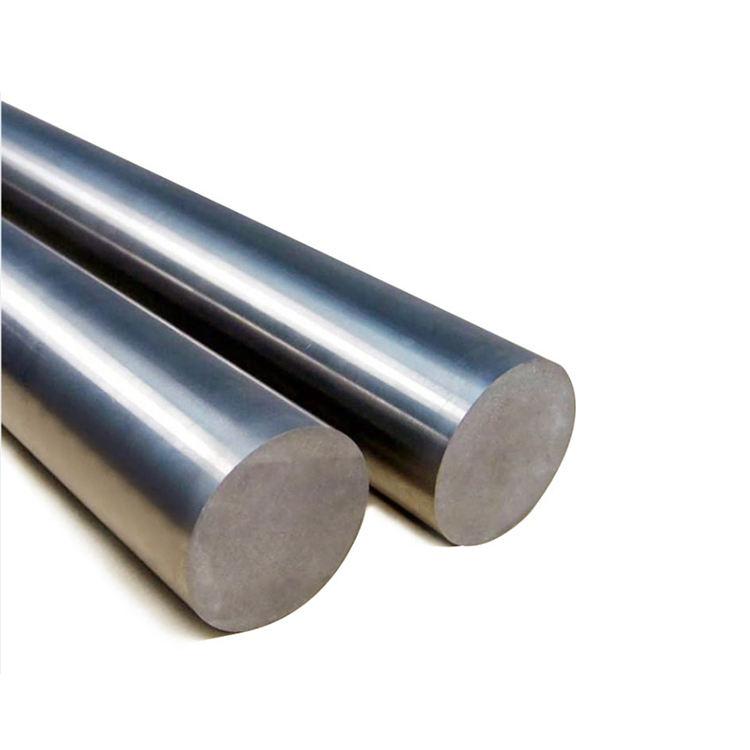

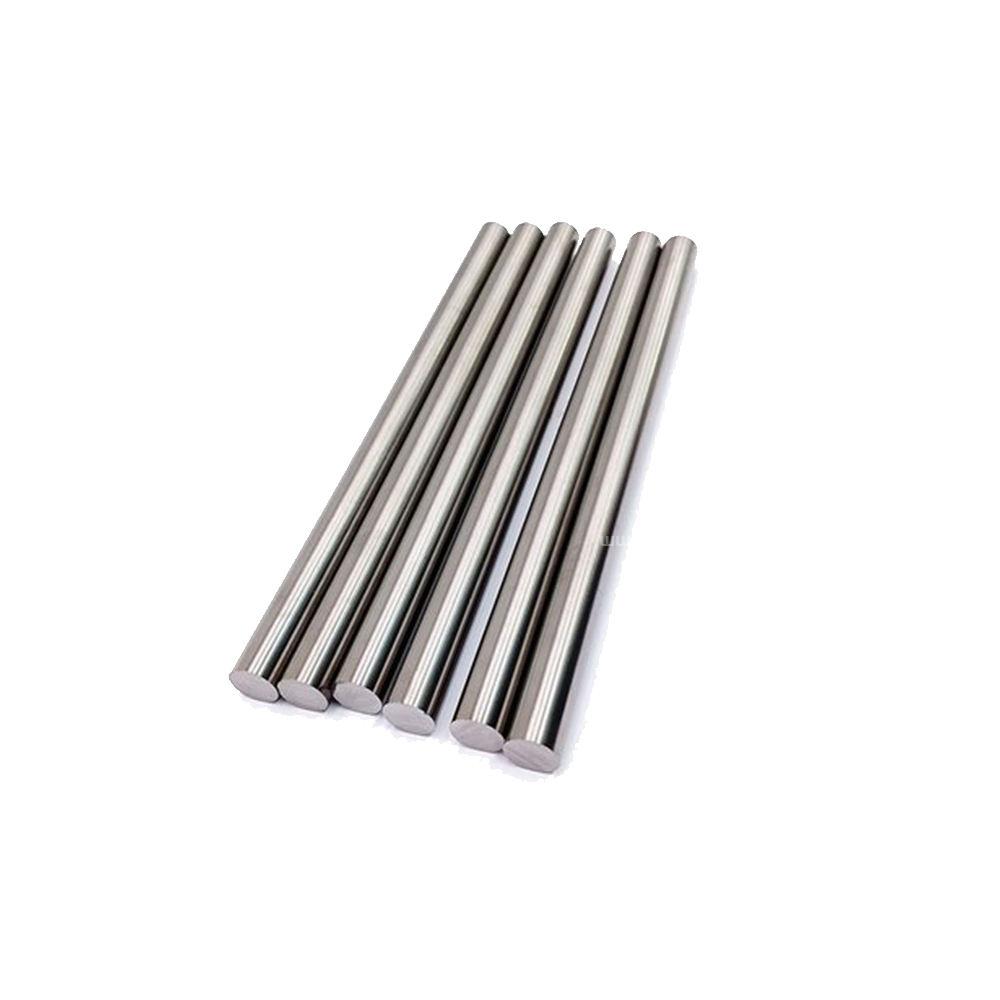

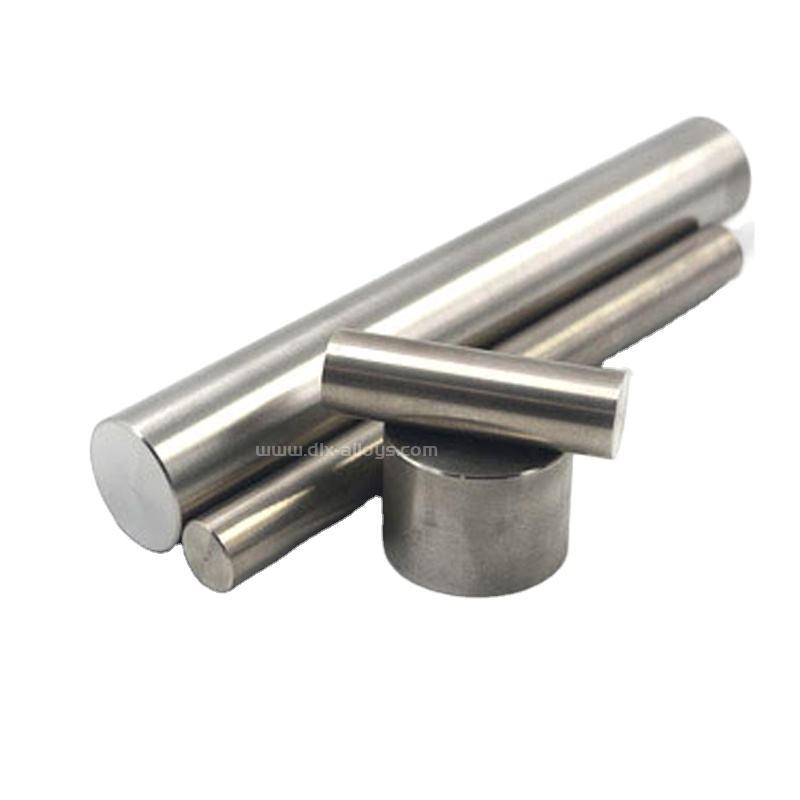

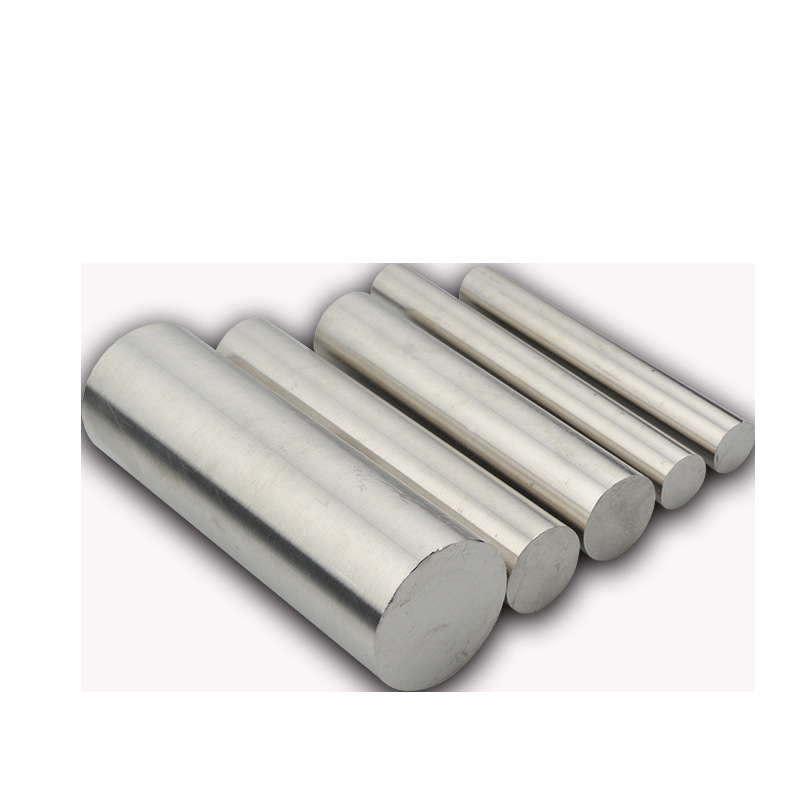

Incoloy 925 Alloy Bar for High Temperature Pressure Vessels and Industrial Applications

‌

‌1. Product Information‌

‌Product Name‌: Incoloy 925 Bar (Seawater Corrosion Resistant Grade)
‌Material Type‌: Nickel-Iron-Chromium-Molybdenum-Copper Alloy (Precipitation-Hardenable)
‌Standards‌: ASTM B425, ASME SB425, UNS N09925, EN 10204 3.1
‌Forms Available‌: Hot-forged bars, cold-finished bars, and HIP-consolidated PM bars.
‌Diameter Range‌: 20 mm to 400 mm (marine grades up to 600 mm).
‌Surface Finish‌: Electropolished (Ra ≤ 0.4 μm), passivated per ASTM A967.
‌Heat Treatment‌:

• Solution Treatment: 900-925°C (1650-1700°F) + forced-air cooling

• Aging: 595°C (1100°F) × 8h + 650°C (1200°F) × 8h

‌Mechanical Properties‌:

• Yield Strength: 690-860 MPa (100-125 ksi)

• Impact Toughness: 75 J (55 ft-lb) at -40°C

‌2. Characteristics‌

This marine-grade Incoloy 925 variant excels in chloride-rich and acidic environments:

• ‌Seawater Corrosion Resistance‌: Pitting resistance equivalent number (PREN) >45.

• ‌Crevice Corrosion Immunity‌: Withstands 10,000 hours in stagnant seawater at 60°C.

• ‌Erosion-Corrosion Resistance‌: Material loss <0.02 mm/year in 3 m/s seawater flow.

• ‌Hydrogen-Induced Cracking (HIC) Resistance‌: Crack sensitivity ratio (CSR) <0.1% per NACE TM0284.

• ‌Phase Stability‌: No intermetallic phase formation after 5000 hours at 350°C.

• ‌Cryogenic Toughness‌: CVN impact energy >50 J at -100°C.

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Hot Isostatic Pressing (HIP)‌: At 1150°C/150 MPa for 4 hours (PM grades).

• ‌Thermomechanical Processing‌: 20% cold working + aging for optimized dual-phase structure.

• ‌Surface Engineering‌:

• Laser shock peening (LSP) to induce 500 MPa compressive surface stress.

• Aluminizing diffusion coating (50 μm) for >1000°C oxidation protection.
  ‌Quality Control‌:

• Immersion testing in artificial seawater per ASTM G52.

• Scanning Kelvin probe (SKP) for localized corrosion potential mapping.

• 3D X-ray tomography for pore/defect analysis (<10 μm resolution).

‌4. Theory‌

The alloy’s marine performance stems from:

• ‌Multi-Phase Strengthening‌: γ' (Ni₃Ti) + ε (Cu-rich) phases provide 360° dislocation pinning.

• ‌Chloride Ion Passivation‌: MoO₄²⁻ complexes form protective film at pH 2-10.

• ‌Copper Redox Behavior‌: Cu⁺/Cu²+ redox cycling enhances repassivation kinetics.

• ‌Niobium Microalloying‌: Nb forms MC-type carbides that refine grain structure.

• ‌Hydrogen Trapping Mechanism‌: TiC particles (50-200 nm) immobilize diffusible hydrogen.

‌5. Application‌

Incoloy 925 bars solve critical challenges in harsh marine/chemical environments:

• ‌Offshore Engineering‌:

• Subsea connectors, ROV components, and seawater pump shafts.

• ‌Desalination‌:

• High-pressure reverse osmosis (RO) membrane housings and brine heater tubes.

• ‌Chemical Processing‌:

• Mixer shafts in HCl production, sulfuric acid concentrator internals.

• ‌Nuclear Waste Handling‌:

• Spent fuel reprocessing vessel agitators in nitric acid media.

6. Parameters
