Incoloy 825 Alloy Bar for Chemical Reactors and Industrial Heat Systems

‌

1. Product Information‌

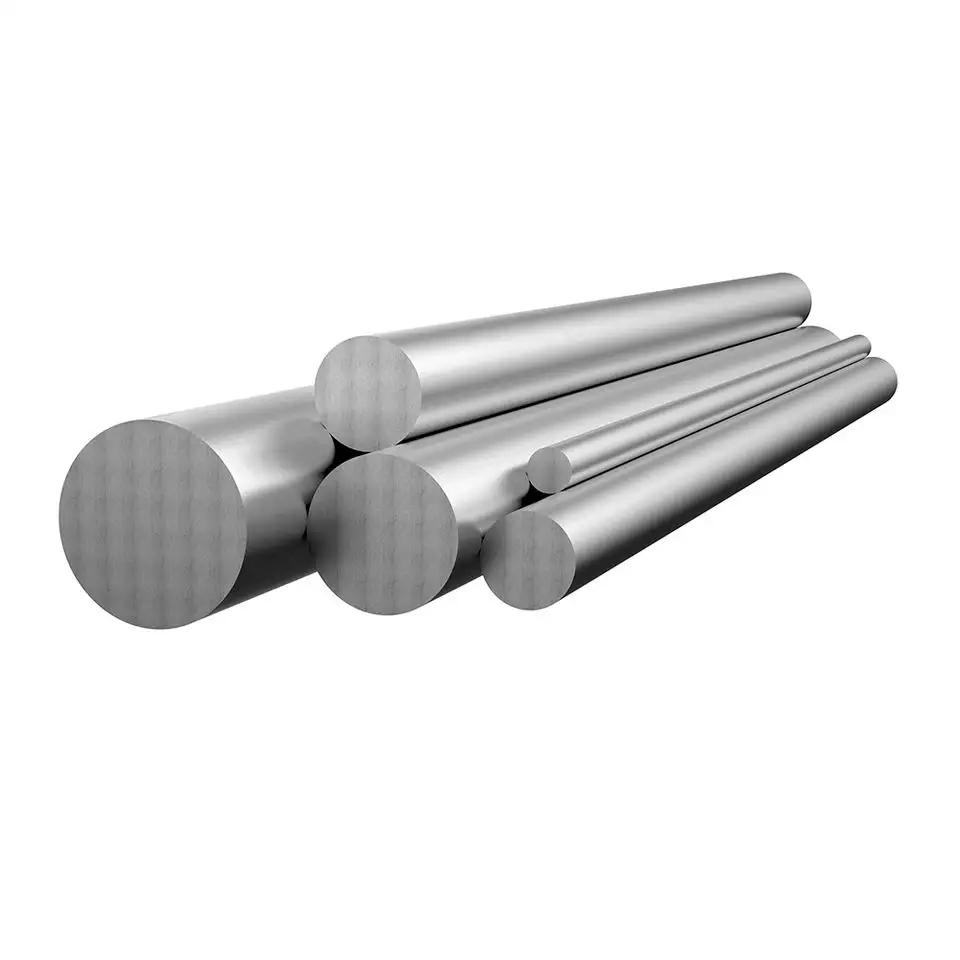

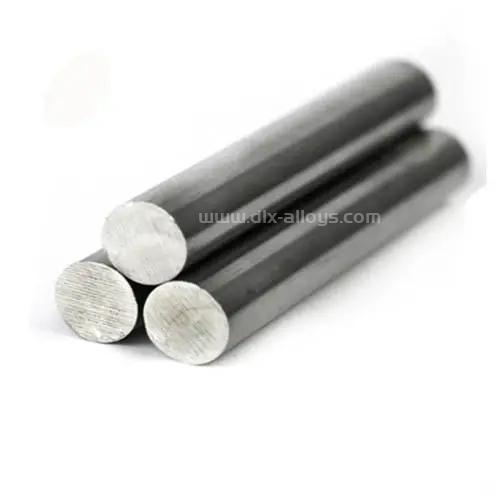

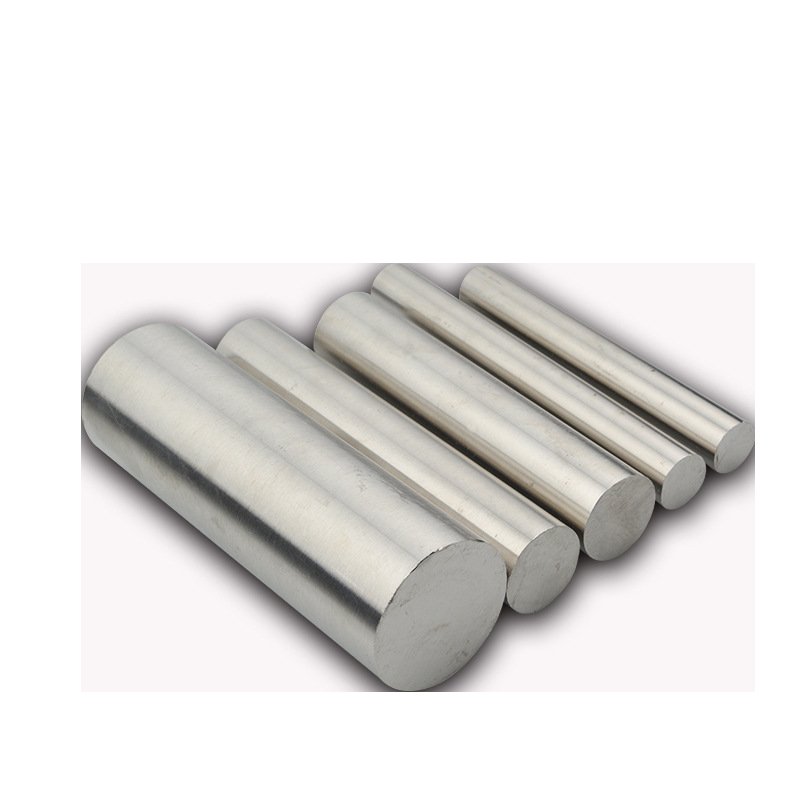

‌Product Name‌: Incoloy 825 Bar (Ultra-High Purity Grade)
‌Material Type‌: Nickel-Iron-Chromium-Molybdenum Superalloy (Low-Cobalt Variant)
‌Standards‌: ASTM B425 (Nuclear), RCC-MRx Code, UNS N08825, ASME III Division 1.
‌Forms Available‌: Vacuum-arc remelted (VAR) bars, isothermally forged bars.
‌Diameter Range‌: 15 mm to 450 mm (ultra-pure grades up to 600 mm).
‌Surface Finish‌: Mirror-polished (Ra ≤ 0.1 μm) or electropolished per ASTM B912.
‌Operating Temperature‌:

• Continuous service: Up to 600°C (1112°F) in radiation fields.

• Short-term exposure: 750°C (1382°F) for aerospace components.

‌2. Characteristics‌

This nuclear-grade Incoloy 825 variant offers unique radiation and thermal stability:

• ‌Neutron Activation Resistance‌: Low Co content minimizes long-lived isotopes (e.g., Co-60 <0.1 Bq/g after 10¹⁹ n/cm²).

• ‌Gamma Radiation Tolerance‌: Retains 85% tensile strength after 10⁸ Gy exposure (per ASTM E521).

• ‌Cryogenic Performance‌: Maintains 25% elongation at -253°C for liquid hydrogen systems.

• ‌Creep-Fatigue Resistance‌: Endures 10⁶ cycles at 500°C under 120 MPa stress (RCC-MRx Level D).

• ‌Ultra-High Vacuum (UHV) Compatibility‌: Outgassing rate <5×10⁻¹¹ Torr·L/s/cm² after bake-out.

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Double Vacuum Melt (VIM + VAR)‌: Achieves O₂ <15 ppm, N₂ <30 ppm.

• ‌Isothermal Forging‌: At 900–1000°C under 300 MPa to eliminate microvoids.

• ‌Heat Treatment‌:

• Homogenization at 1050°C (1922°F) for 6 hours.

• Aging at 620°C (1150°F) for 8 hours to optimize TiC distribution.
  ‌Quality Control‌:

• Neutron diffraction for residual stress mapping.

• Positron annihilation spectroscopy for vacancy defect analysis.

• Secondary ion mass spectrometry (SIMS) for surface impurity profiling.

‌4. Theory‌

The alloy’s nuclear performance is governed by:

• ‌Radiation Defect Engineering‌: High Ni content promotes Frenkel pair recombination, reducing void swelling (<0.2% at 10²¹ n/cm²).

• ‌Nanoscale TiC Precipitation‌: 5–50 nm TiC particles act as sinks for helium bubbles and dislocation pinning.

• ‌Low-Activation Design‌: Minimized Co, Ta, and Nb content reduces residual radioactivity.

• ‌Hydrogen Compatibility‌: Mo-rich matrix inhibits hydrogen embrittlement in liquid H₂ environments.

‌5. Application‌

Specialized Incoloy 825 bars serve critical roles in extreme environments:

• ‌Nuclear Waste Handling‌:

• Spent fuel reprocessing vessel internals, vitrification furnace stirrers, and radioactive waste containers.

• ‌Aerospace‌:

• Liquid rocket engine turbopump shafts, re-entry vehicle thermal shields, and satellite propulsion valves.

• ‌Cryogenic Systems‌:

• Liquid hydrogen storage tank fittings and superconducting magnet structural supports.

• ‌Semiconductor‌:

• Plasma etching chamber components and UHV wafer transfer arms.
