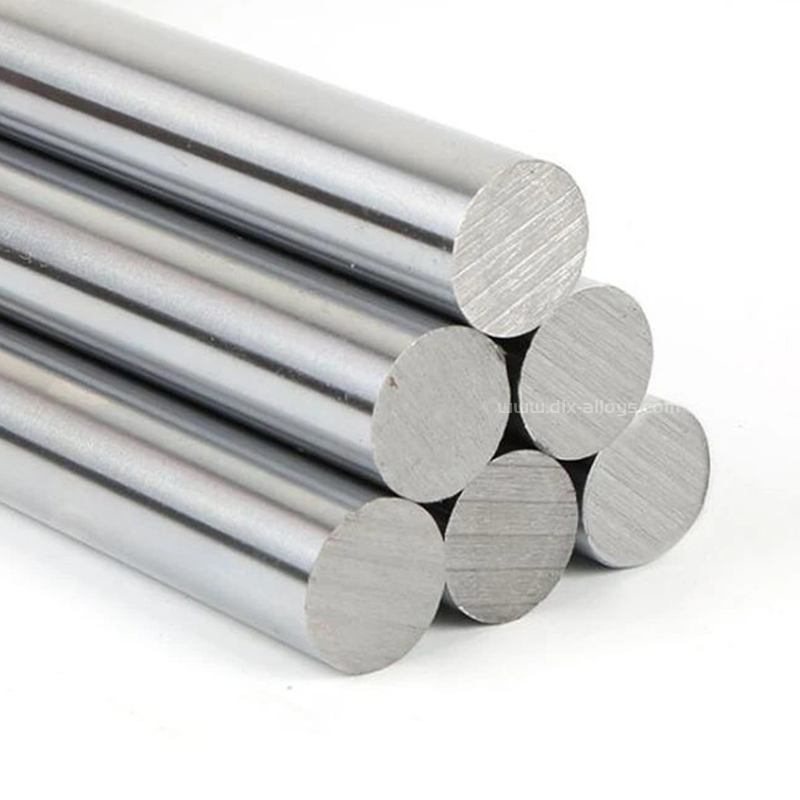

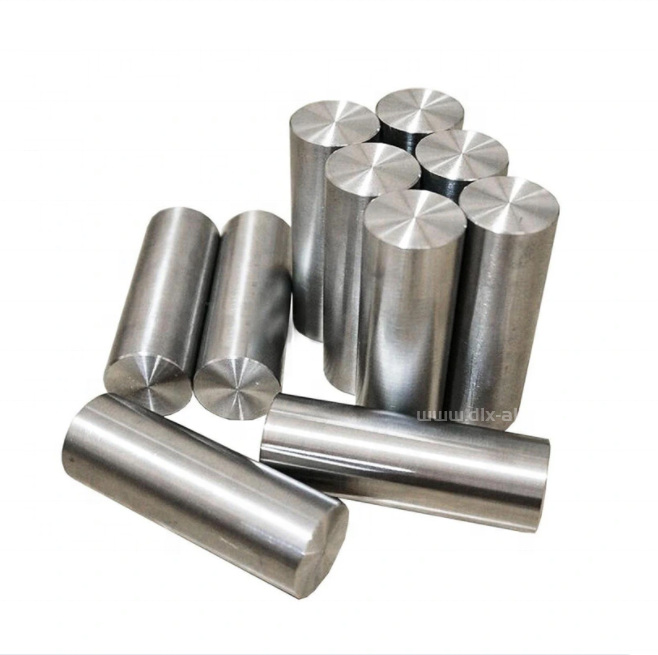

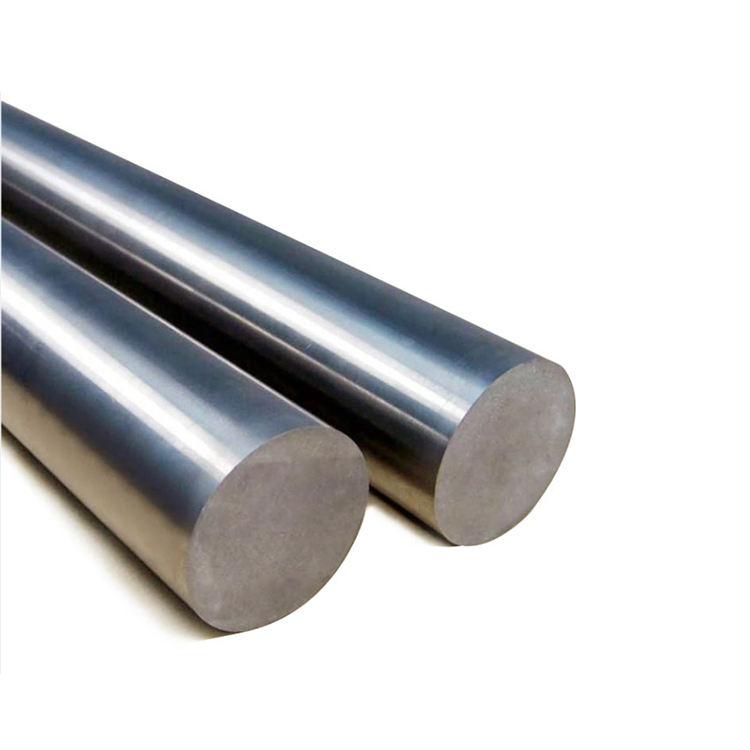

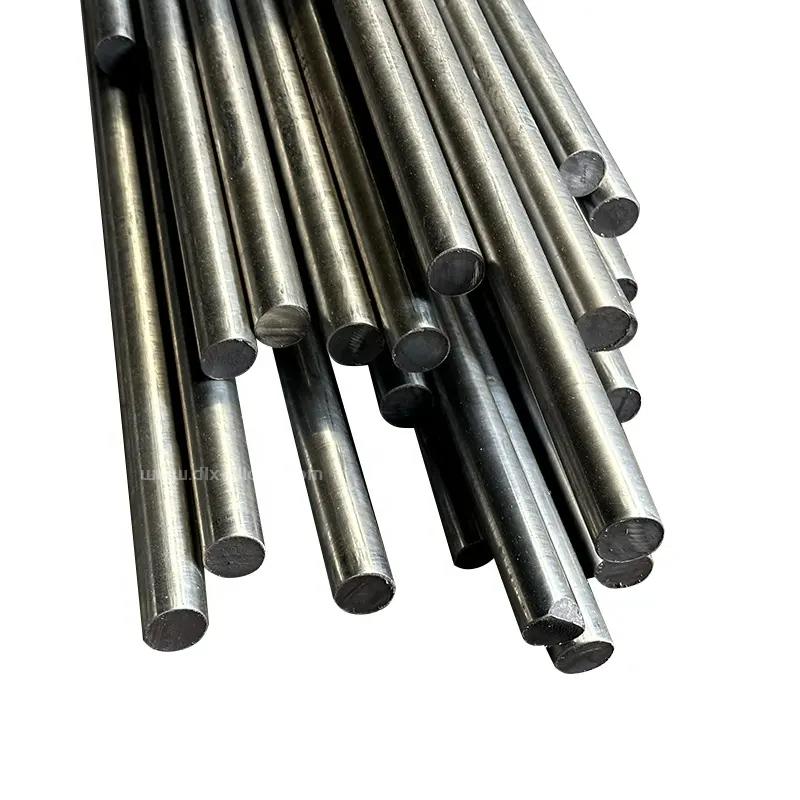

Incoloy 800HT Alloy Bar Rod for High Temperature Heat Exchangers and Furnace Components

1. Product Information‌

‌Product Name‌: Incoloy 800HT Bar (Ultra-High Purity Neutron-Resistant Grade)
‌Material Type‌: Nickel-Iron-Chromium Superalloy (Low-Activation Design)
‌Standards‌: RCC-MRx 2023, ITER Materials Code, UNS N08811, ASME III Division 5.
‌Forms Available‌: Powder-metallurgy (PM) bars, additive-manufactured near-net shapes.
‌Diameter Range‌: 10 mm to 350 mm (PM grades up to 800 mm).
‌Surface Finish‌: Mirror-polished (Ra ≤ 0.1 μm), passivated per ASTM A967.

‌Operating Temperature‌:

• Continuous service: 550–750°C in neutron flux environments.

• Transient exposure: 1050°C (1922°F) during plasma disruptions.

‌2. Characteristics‌

This nuclear-optimized Incoloy 800HT variant excels in radiation and extreme thermal shock environments:

• ‌Neutron Damage Tolerance‌: He/dpa ratio <10 appm/0.1 dpa at 650°C (14 MeV neutrons).

• ‌Plasma Erosion Resistance‌: Sputtering yield reduced by 60% vs. 316L in deuterium plasma.

• ‌Helium Embrittlement Resistance‌: Nano-oxide dispersion traps He bubbles, maintaining >15% elongation post-irradiation.

• ‌Thermal Shock Stability‌: Withstands 500 cycles of 200°C/s heating/cooling rates without cracking.

• ‌Ultra-High Vacuum (UHV) Compatibility‌: Outgassing rate <1×10⁻¹¹ Torr·L/s/cm² after 400°C bake-out.

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Plasma Rotating Electrode Process (PREP)‌: Produces 45-150 μm spherical powder for PM bars.

• ‌Hot Isostatic Pressing (HIP)‌: At 1150°C/150 MPa for 4 hours to achieve 99.99% density.

• ‌Heat Treatment‌:

• Stress relief at 850°C (1562°F) for 2 hours.

• Direct aging at 750°C (1382°F) for 24 hours to stabilize nano-precipitates.
  ‌Quality Control‌:

• Small-angle neutron scattering (SANS) for void swelling analysis.

• Laser-induced breakdown spectroscopy (LIBS) for surface impurity mapping.

• Residual stress profiling via neutron diffraction.

‌4. Theory‌

The alloy’s fusion-relevant properties derive from defect engineering:

• ‌Nano-Oxide Dispersion Strengthening (NODS)‌: Y₂O₃/TiC nano-clusters (2-5 nm) pin dislocations and helium bubbles.

• ‌Radiation-Induced Solute Redistribution‌: Cr migrates to sinks, maintaining corrosion resistance under 10²⁴ n/m² flux.

• ‌Gradient Microstructure Design‌: Surface nanocrystallization (grain size 50 nm) via laser shock peening reduces sputtering.

• ‌Transmutation Control‌: Low Ni⁵⁸ isotope content minimizes Co-60 activation (half-life 5.27 years).

‌5. Application‌

Incoloy 800HT bars enable breakthrough technologies in extreme environments:

• ‌Nuclear Fusion‌:

• First wall heat sink components in ITER-like tokamaks.

• Divertor cassette supports handling 10 MW/m² heat flux.

• ‌Space Propulsion‌:

• Nuclear thermal rocket (NTR) fuel element cladding (hydrogen compatibility at 2500°C).

• Re-entry vehicle leading edges for hypersonic glide.

• ‌Advanced Reactors‌:

• Molten salt reactor (MSR) pump shafts (LiF-BeF₂ coolant compatibility).

• ‌Semiconductor‌:

• Extreme ultraviolet (EUV) lithography chamber components requiring UHV stability.

6. Parameters
