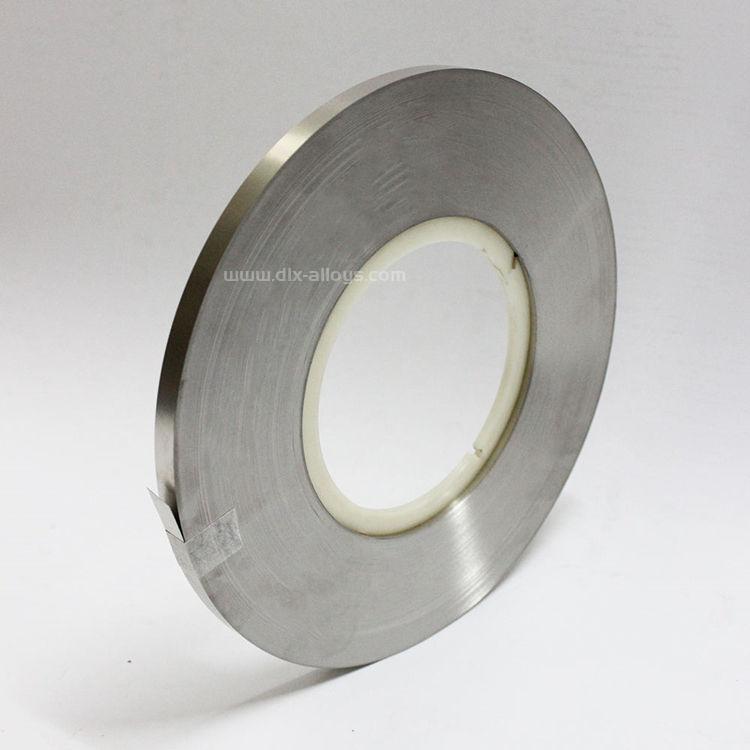

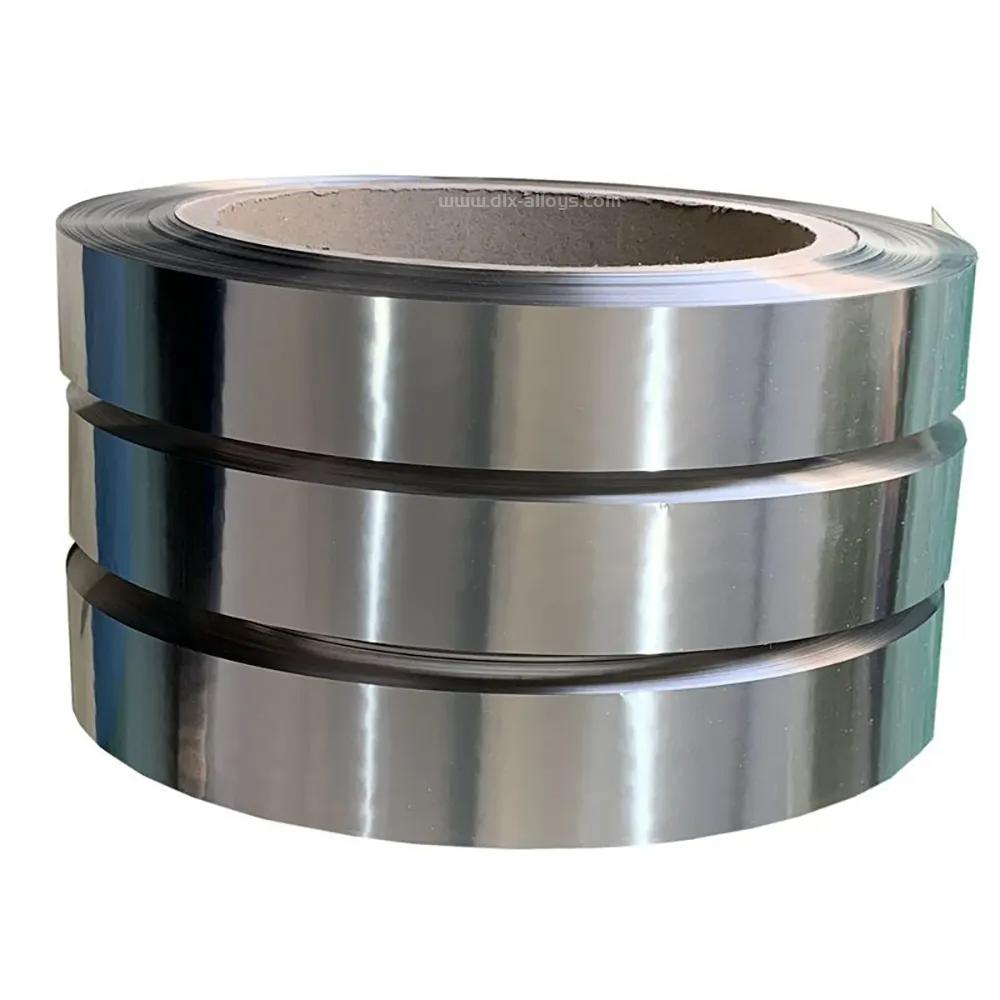

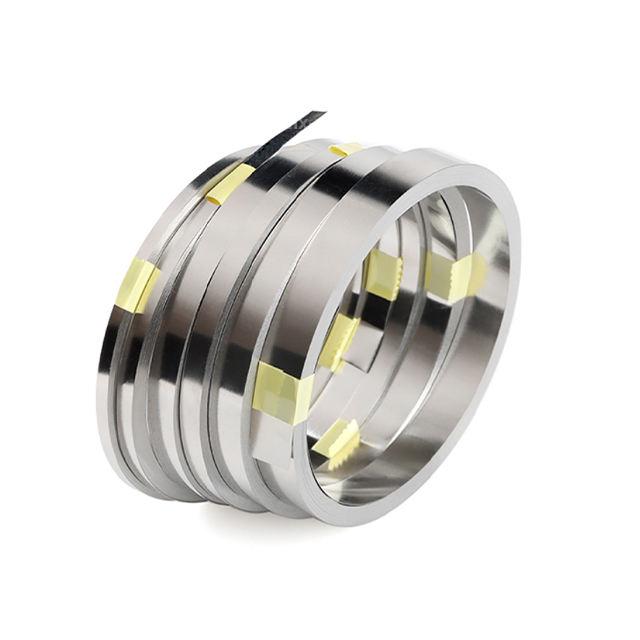

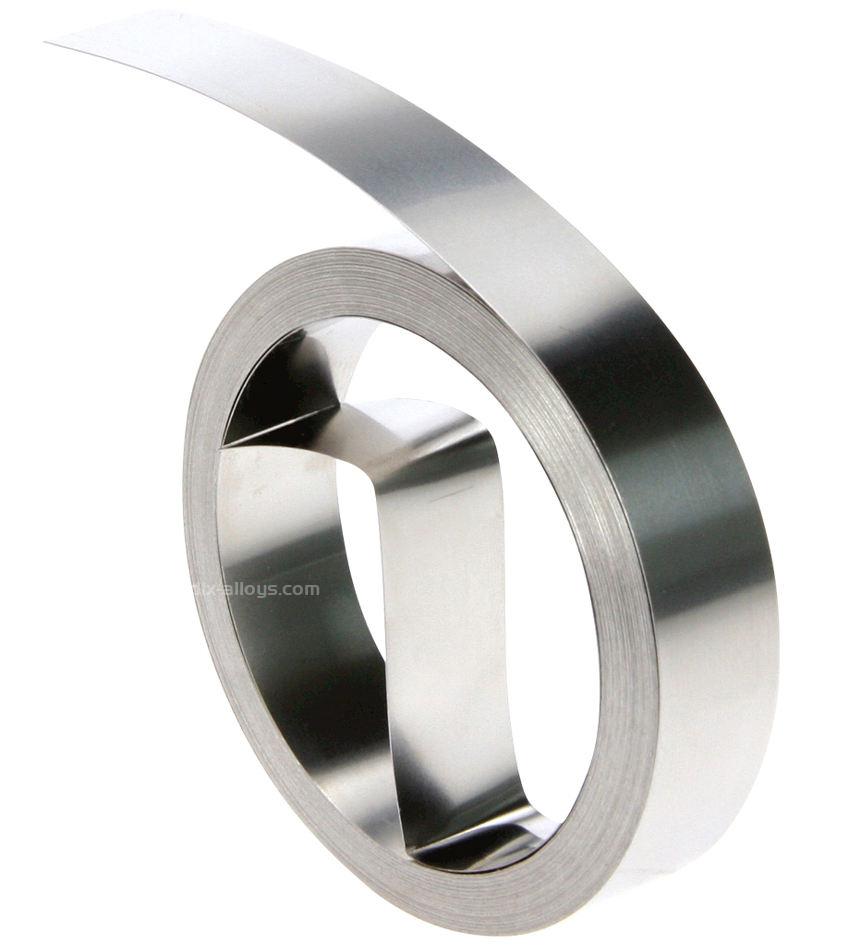

High Strength Incoloy 800H High Temperature Alloy Strip for Aerospace and Turbine Components

1. Product Information‌

• ‌Alloy Designation‌: Incoloy 800H (UNS N08810 / W.Nr. 1.4958)

• ‌Certifications‌:
  ASME SB409, EN 10095, NACE MR0103 (ISO 21457) for sour service

• ‌Chemical Composition‌ (wt%):
  Ni 30-34%, Cr 19-23%, Fe ≥39.5%, C 0.05-0.10%, Al 0.15-0.60%, Ti 0.15-0.60%, Mn ≤1.5%, Si ≤1.0%

• ‌Dimensional Tolerances‌:
  Thickness: 0.5–25 mm (±0.5% or ±0.02 mm, whichever is stricter)
  Width: 50–2,500 mm (edge straightness ≤0.1 mm/m)

• ‌Supply Conditions‌:
  Solution-annealed (1,100–1,150°C, water quench), pickled, or cold-rolled (30–50% reduction)

‌2. Key Characteristics‌

• ‌Extreme Temperature Stability‌:

• Continuous service up to ‌815°C‌ with oxidation resistance (mass loss <2 mg/cm² after 1,000 hours at 900°C per ASTM G54).

• Creep rupture strength: ‌120 MPa‌ at 700°C/10,000 hours (per ASTM E139).

• ‌Phase Stability‌:

• No detrimental σ-phase formation below ‌850°C‌ (verified by Thermo-Calc simulations).

• ‌Corrosion Resistance‌:

• Sulfidation resistance in H₂S-containing environments up to ‌550°C‌ (corrosion rate <0.1 mm/year per NACE TM0177).

• Resistance to carburization in hydrocarbon processing (carbon penetration <0.5 mm after 5 years at 650°C).

• ‌Mechanical Properties‌:

• Room temperature: Tensile strength ≥550 MPa, yield strength ≥210 MPa, elongation ≥35%.

• Elevated temperature (700°C): 0.2% proof strength ≥85 MPa.

‌3. Manufacturing Technology‌

• ‌Melt Process‌:
  Triple vacuum refinement (VIM + ESR + VAR) achieves ultra-low impurities:

• Oxygen ≤30 ppm, sulfur ≤0.003%, phosphorus ≤0.015%.

• ‌Thermomechanical Processing‌:

• Controlled warm rolling at ‌650–750°C‌ with inter-pass recrystallization annealing.

• Online laser ultrasonics for real-time grain size monitoring (ASTM 5-7).

• ‌Surface Engineering‌:

• Electrochemical grinding (ECG) generates compressive residual stress (−400 MPa) on strip edges.

• Aluminide diffusion coating option (thickness 20–50 µm) for enhanced oxidation resistance.

‌4. Material Science Principles‌

• ‌High-Temperature Strengthening‌:

• ‌Carbon Control‌: Optimal C content (0.05–0.10%) promotes M₂₃C₆ carbide precipitation at grain boundaries, enhancing creep resistance without compromising ductility.

• ‌Solid Solution Strengthening‌: Ni-Cr matrix with Ti/Al additions stabilizes FCC structure against phase transformation.

• ‌Oxidation Mechanism‌:
  Dual-layer oxide formation:

• Outer layer: Cr₂O₃ (chromia) for oxygen barrier.

• Inner layer: Al₂O₃ (alumina) preventing subsurface oxidation.

• ‌Thermal Fatigue Resistance‌:
  Low coefficient of thermal expansion (CTE: 14.5 µm/m·°C, 20–600°C) minimizes thermal stress during cycling.

‌5. Critical Applications‌

• ‌Power Generation‌:

• Combustion liners for gas turbines (operating at 750–800°C/15 bar).

• Superheater tubes in advanced ultra-supercritical (A-USC) boilers (620°C/31 MPa steam).

• ‌Petrochemical Processing‌:

• Ethylene cracking furnace tubes (pyrolysis service at 850–950°C).

• Hydrocracker reactor internals (resisting H₂ + H₂S at 450°C/20 MPa).

• ‌Nuclear Systems‌:

• Generation IV reactor heat exchangers (helium-cooled, 750°C design).

• Spent fuel dry storage canisters (1,000-year integrity assurance).

• ‌Industrial Heating‌:

• Roller hearth furnace conveyors (1,000°C cyclic loading).

  Sintering trays for powder metallurgy (thermal shock resistance >500 cycles).

• ‌Emerging Technologies‌:

• Concentrated solar power (CSP) receiver panels (900°C solar flux).

• Hydrogen production via high-temperature electrolysis (850°C steam).
