High Strength Incoloy 800 Alloy Bar for Heat Treatment Furnaces and Power Plant Systems

‌

1. Product Information‌

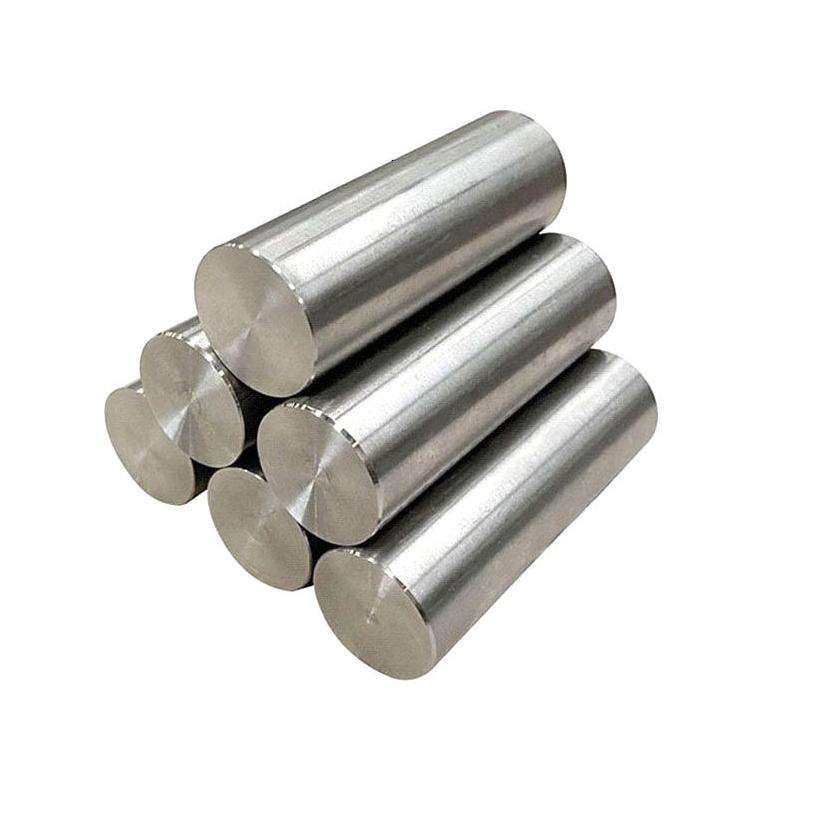

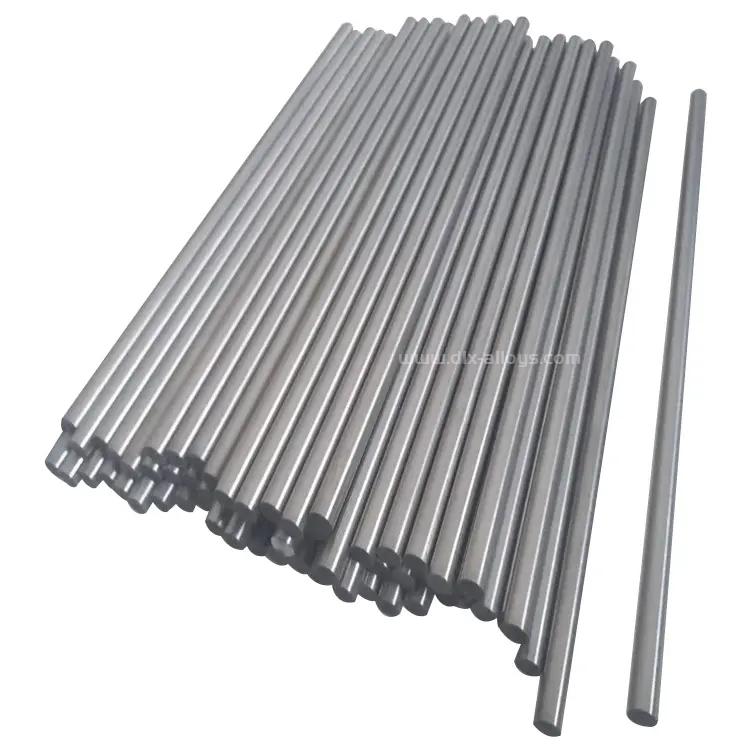

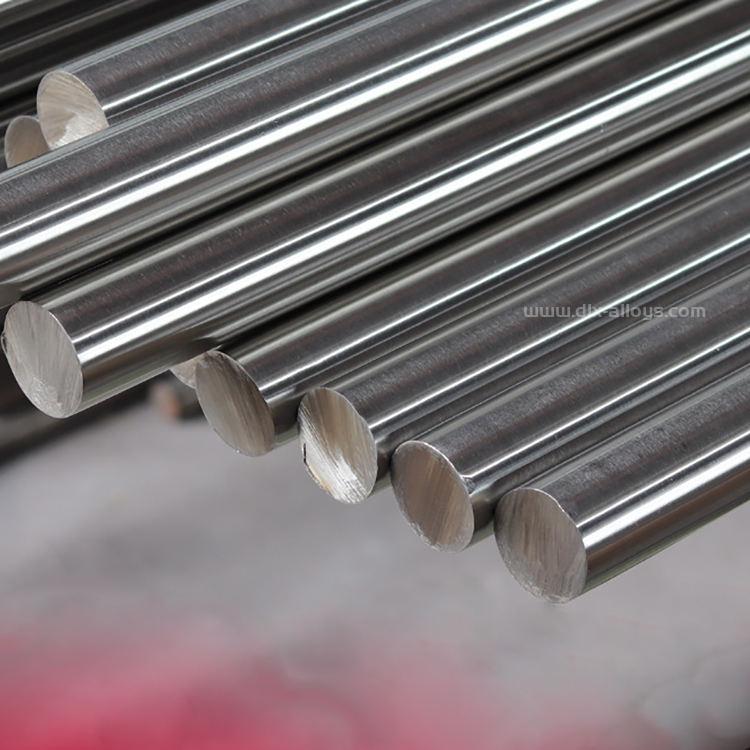

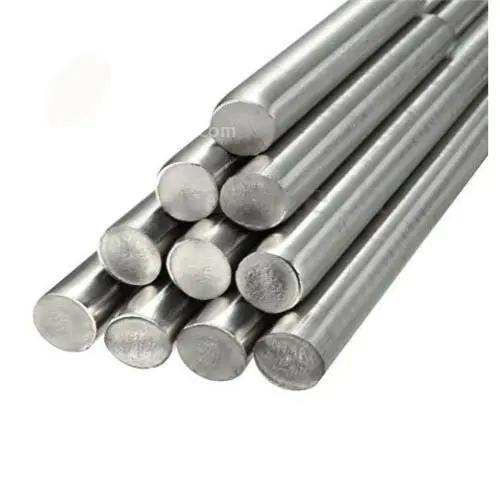

‌Product Name‌: Incoloy 800 Bar (Nuclear-Grade)
‌Material Type‌: Nickel-Iron-Chromium Superalloy (Low-Cobalt Variant)
‌Standards‌: ASTM B408 (Nuclear), RCC-MRx Code, UNS N08800, ASME III Division 1.
‌Forms Available‌: Centrifugally cast bars, vacuum-arc remelted (VAR) bars.
‌Diameter Range‌: 10 mm to 250 mm (ultra-pure grades up to 500 mm).
‌Surface Finish‌: Electropolished (Ra ≤ 0.2 μm) or passivated per ASTM A967.
‌Key Composition‌:

• Nickel (Ni): 32-35%

• Chromium (Cr): 20-22%

• Iron (Fe): Balance

• Carbon (C): ≤0.05%

• Cobalt (Co): ≤0.10% (controlled for nuclear compliance)

• Aluminum (Al): 0.25-0.45%

• Titanium (Ti): 0.25-0.45%
  ‌Operating Temperature‌:

• Continuous service: Up to 750°C (1382°F) in neutron flux environments.

• Short-term exposure: Up to 950°C (1742°F) for aerospace components.

‌2. Characteristics‌

This nuclear-optimized Incoloy 800 bar variant delivers exceptional performance in radiation and ultra-high-vacuum (UHV) environments:

• ‌Neutron Irradiation Stability‌: Low Co content (<0.10%) minimizes long-lived isotope activation (e.g., Co-60).

• ‌Creep-Fatigue Resistance‌: Endures 10⁵ cycles at 700°C with 150 MPa stress amplitude (per RCC-MRx design curves).

• ‌Ultra-High Vacuum Compatibility‌: Outgassing rate <1×10⁻⁹ Torr·L/s/cm² after electropolishing, ideal for space applications.

• ‌Corrosion Resistance‌: Withstands borated water (3,000 ppm boron) in PWR nuclear reactors without stress corrosion cracking.

• ‌Dimensional Precision‌: Tight tolerance (±0.05% of nominal diameter) for critical rotating components.

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Vacuum Induction Melting (VIM) + VAR‌: Reduces impurities (O₂ < 20 ppm, N₂ < 50 ppm) and ensures radial homogeneity.

• ‌Isothermal Forging‌: Performed at 1050°C (1922°F) under 150 MPa pressure to eliminate porosity.

• ‌Heat Treatment‌:

• Homogenization at 1150°C (2102°F) for 4 hours.

• Stabilization annealing at 750°C (1382°F) for 16 hours to optimize precipitate distribution.
  ‌Quality Control‌:

• Neutron radiography for detecting sub-surface defects in nuclear applications.

• Residual stress analysis via X-ray diffraction (XRD).

• Helium leak testing (<1×10⁻¹⁰ mbar·L/s) for aerospace UHV components.

‌4. Theory‌

The alloy’s unique properties stem from advanced nuclear-grade engineering:

• ‌Low-Activation Design‌: Minimized Co, Ta, and Nb content reduces residual radioactivity in neutron flux.

• ‌Radiation-Induced Defect Mitigation‌: High Ni content promotes recombination of Frenkel pairs, preserving ductility post-irradiation.

• ‌Boron Compatibility‌: Chromium-rich oxide prevents boron ingress in PWR coolant systems.

• ‌Grain Boundary Pinning‌: Nano-scale TiN precipitates (5-20 nm) stabilize grain boundaries against thermal and irradiation creep.

‌5. Application‌

Specialized Incoloy 800 bars are critical in radiation and precision engineering fields:

• ‌Nuclear Power‌:

• Control rod drive mechanism shafts, reactor vessel internals, and steam generator divider plates.

• Neutron guide tube supports in research reactors.

• ‌Aerospace‌:

• Satellite thruster nozzles, rocket engine turbopump shafts, and re-entry vehicle heat shields.

• ‌Semiconductor‌:

• Wafer handling arms and CVD reactor components requiring UHV conditions.

• ‌Medical‌:

• Proton therapy beamline components and cyclotron target holders.

6. Parameters
