High Temperature Strip

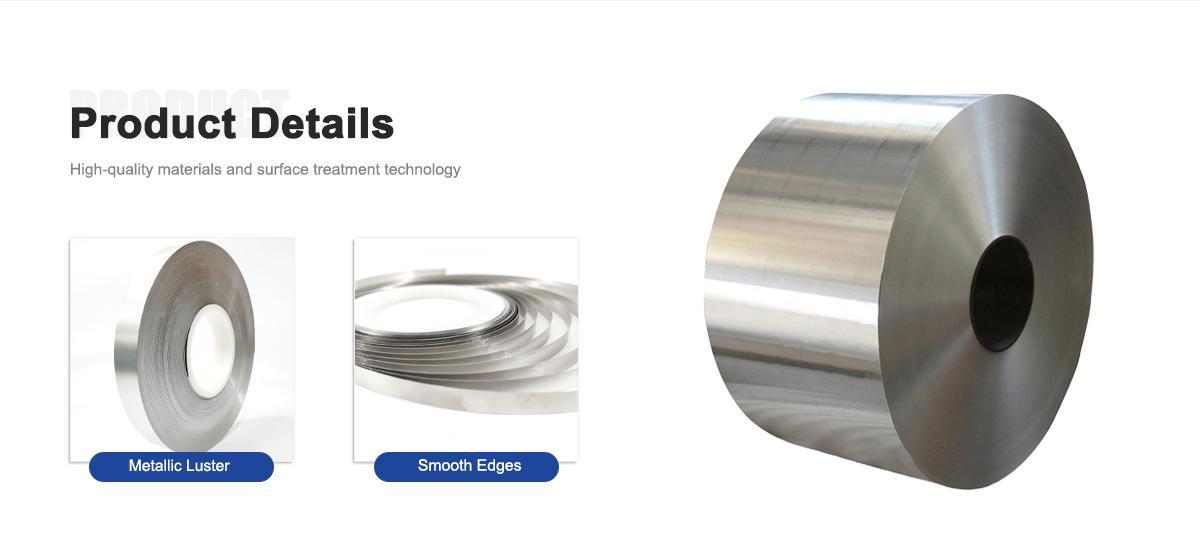

Product Details

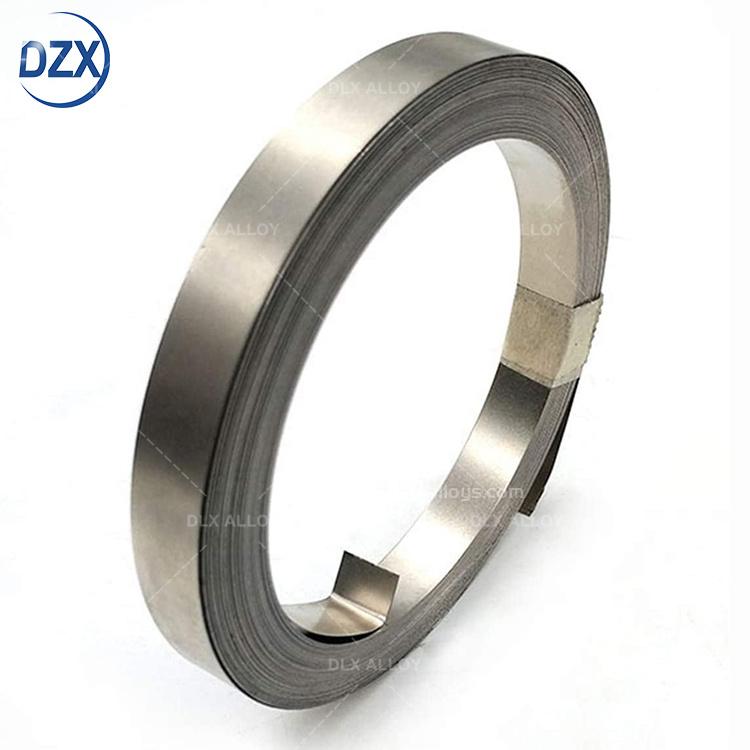

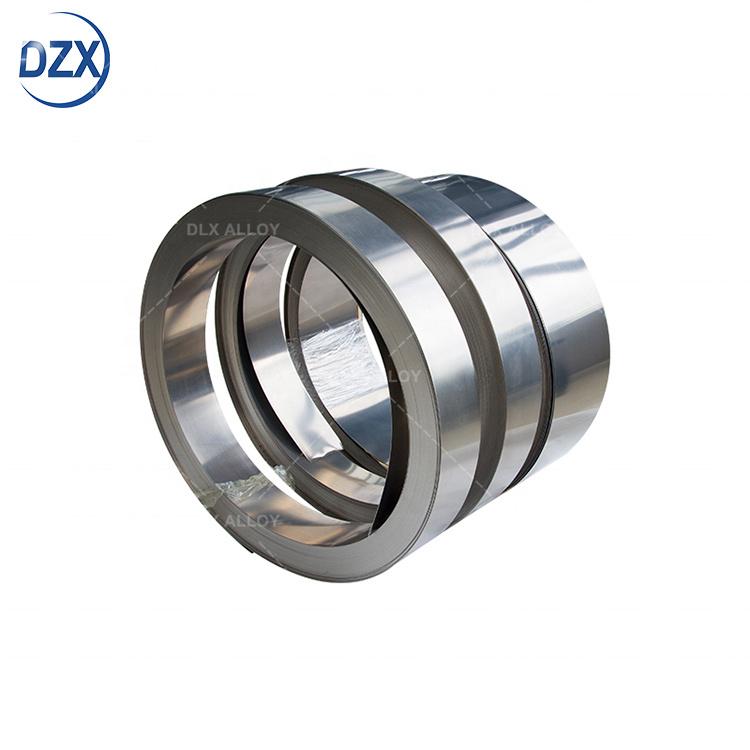

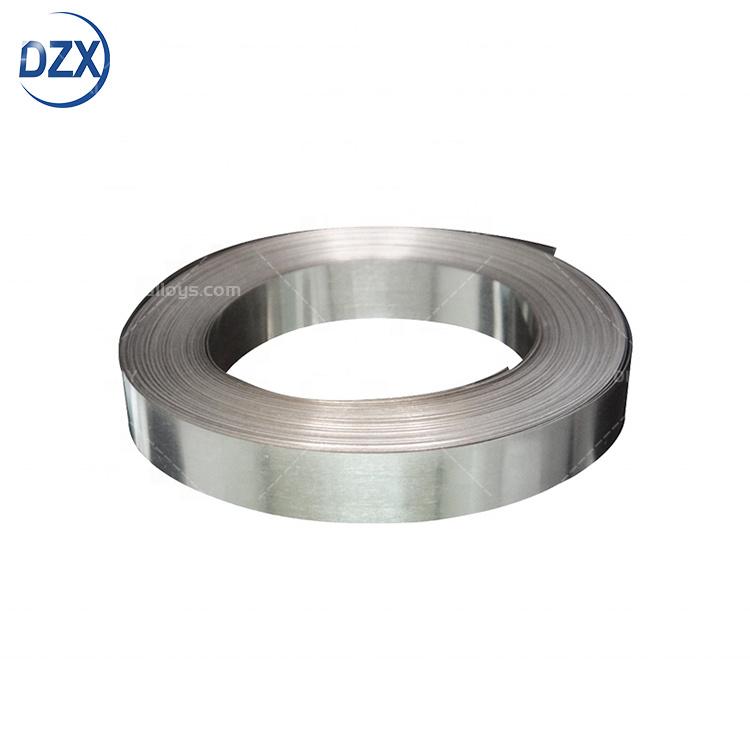

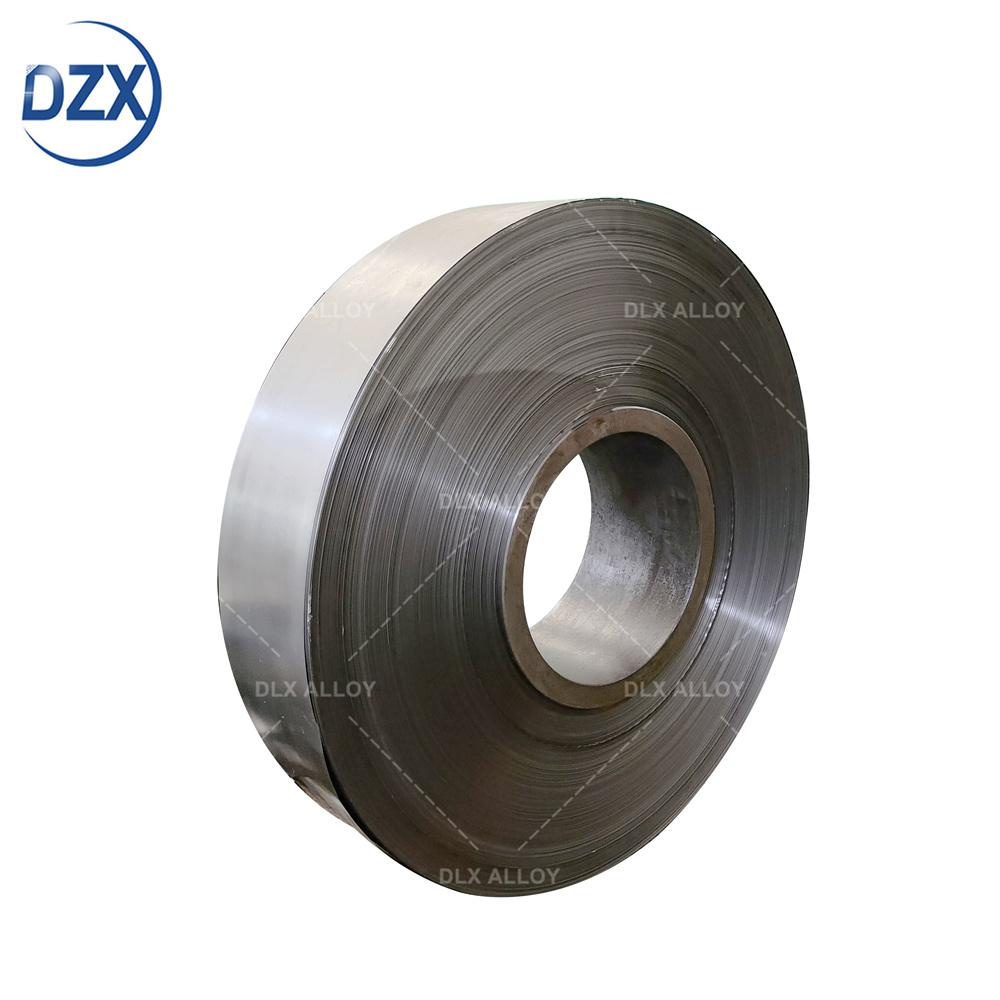

Nimonic 90 high temperature alloy bar is a high-performance, heat-resistant alloy composed primarily of nickel and chromium, designed for use in environments that demand exceptional resistance to oxidation, creep, and thermal fatigue. This high-temperature alloy strip with dimensions of 0.5mm thickness and 50mm width offers superior mechanical strength and excellent performance under extreme thermal conditions. It is commonly used in turbine blades, engine components, and other high-stress applications where durability at high temperatures is critical.
High Temperature Resistance: Capable of withstanding temperatures up to 950°C without significant loss of mechanical properties, making it ideal for high-temperature industrial applications.
Corrosion Resistance: Nimonic 90 offers excellent resistance to oxidation and corrosion, especially in environments where exposure to high-temperature gases and fluids is common.
Mechanical Strength: The alloy maintains high strength and stability under thermal stresses, preventing deformation or failure during prolonged exposure to high heat.
Dimensional Stability: The strip maintains its dimensions and does not undergo significant warping or distortion under high-temperature conditions.
Ductility and Toughness: Despite its strength, Nimonic 90 remains ductile, allowing it to be shaped and welded with ease for complex applications.
Color: Metallic grey finish, typical of high-quality, heat-resistant alloys.

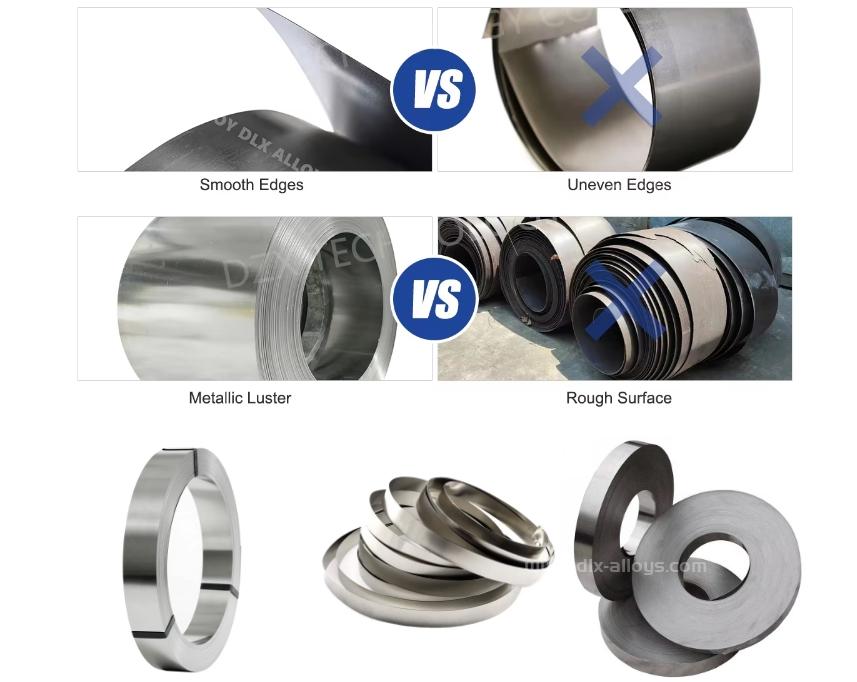

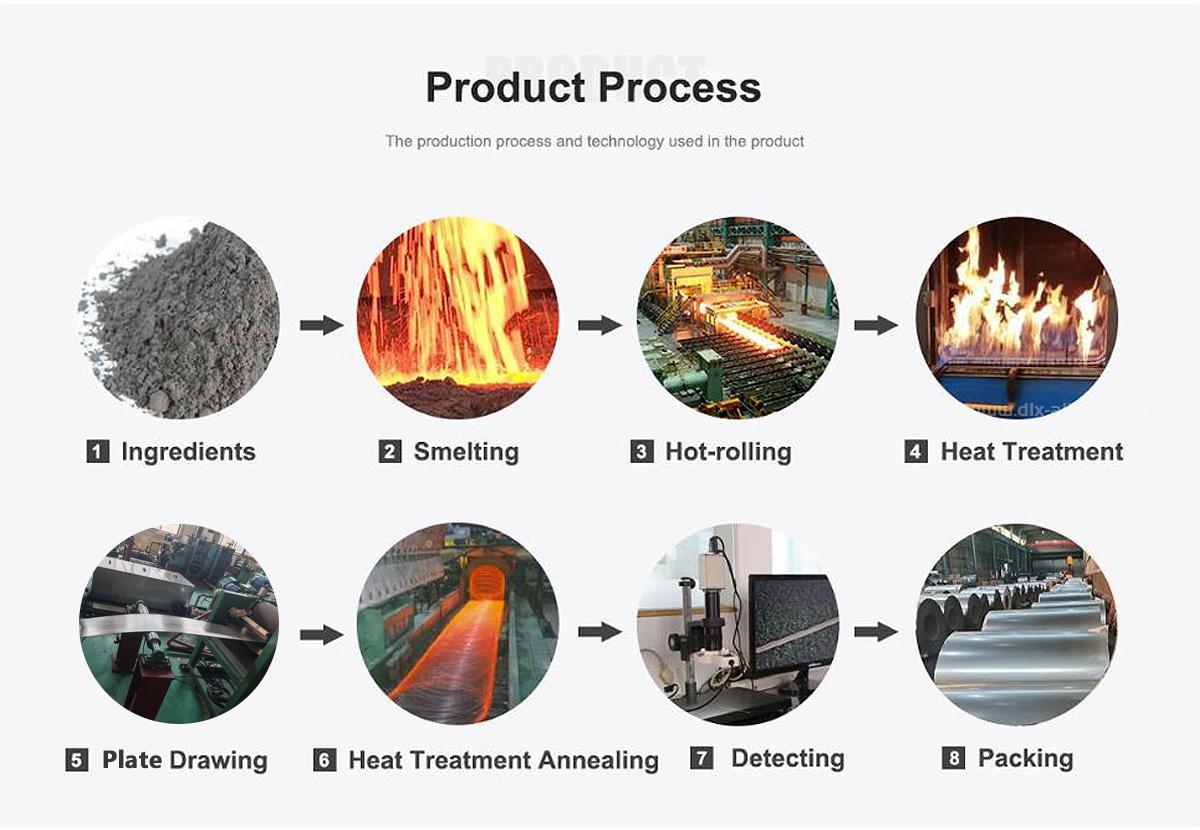

Nimonic 90 strips are manufactured using advanced processes such as vacuum induction melting and precision rolling to ensure uniform composition and optimal mechanical properties. These processes remove impurities and control the distribution of alloying elements, ensuring that each strip meets the highest standards of performance under high-temperature and corrosive conditions. The strip's flat, smooth surface enhances its ability to resist thermal stresses while maintaining its integrity during operation.
The primary function of Nimonic 90 alloy is to maintain its mechanical strength and corrosion resistance under high temperatures. When exposed to heat, the alloy undergoes minimal thermal expansion and retains its structural integrity. The key to its performance lies in its composition—nickel for high-temperature strength, chromium for oxidation resistance, and cobalt for further enhancing strength and resistance to creep at elevated temperatures. This alloy is ideal for applications where temperature-induced stress and chemical exposure are constant.
Turbine Engine Components
Nimonic 90 is widely used in the aerospace industry for the manufacture of turbine blades, rotors, and other critical engine components. The alloy’s ability to withstand extreme temperatures and resist oxidation is crucial for the performance and safety of aircraft engines.
High-Temperature Gas Turbines
In power generation, this alloy strip is used to manufacture parts of high-temperature gas turbines, including combustion chambers and nozzles, which are exposed to high thermal stresses.
Chemical Processing Equipment
Nimonic 90 is used in the chemical processing industry for components that must operate under extreme heat and corrosive environments, such as reactors, heat exchangers, and furnace parts.
This product is also referred to as "Nimonic 90 Heat-Resistant Alloy," "Nimonic 90 Alloy Strip," and "Nimonic 90 High-Temperature Material" for various applications in the aerospace and industrial sectors.

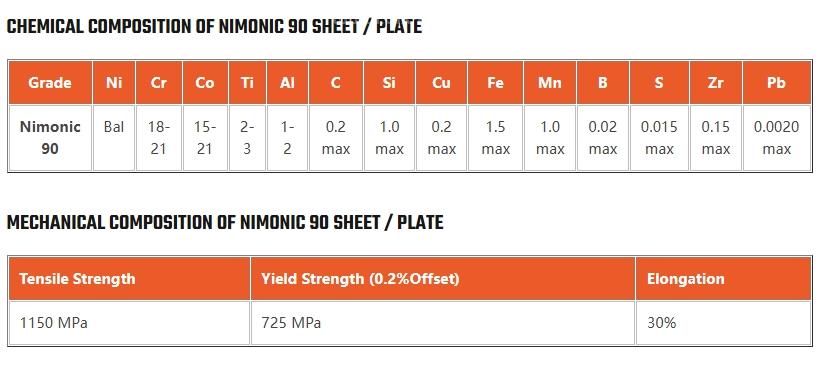

Item | Nimonic80A | Nimonic 90 | GH1140 | GH3625 | GH4169 | ||
C | ≤0.08 | ≤0.1 | ≤0.13 | 0.06-0.12 | ≤0.1 | 0.05-0.15 | ≤0.08 |
Mn | ≤2 | ≤1 | ≤1 | ≤0.7 | 3.14-4.15 | -- | ≤0.35 |
Fe | rest | ≤3 | ≤1.5 | rest | ≤0.5 | -- | rest |
P | ≤0.04 | ≤0.02 | -- | ≤0.025 | -- | -- | -- |
S | ≤0.03 | ≤0.015 | ≤0.015 | ≤0.015 | -- | -- | ≤0.01 |
Si | ≤1 | ≤1 | ≤1 | ≤0.8 | -- | -- | ≤0.35 |
Cu | -- | -- | ≤0.2 | -- | -- | -- | ≤0.3 |
Ni | 24-27 | rest | -- | 35-40 | rest | rest | 50-55 |
Co | -- | ≤2 | 15-21 | -- | ≤1.00 | 0.5-2.5 | ≤1.00 |
Al | ≤0.35 | 1-1.8 | 1-2 | 0.2-0.6 | ≤0.4 | ≤0.5 | 0.2-0.8 |
Ti | 1.9-2.35 | 1.8-2.7 | 2-3 | 0.7-1.2 | ≤0.4 | ≤0.15 | 0.7-1.15 |
Cr | 13.5-16 | 18-21 | 18-21 | 20-23 | 20-23 | 20.5-23 | 17-21 |
Nb | -- | -- | -- | -- | -- | -- | 4.75-5.5 |
Mo | 1-1.5 | -- | -- | 2-2.5 | 8-10 | 8-10 | 2.8-3.3 |
B | 0.001-0.1 | ≤0.008 | ≤0.02 | -- | -- | -- | -- |
V | 0.1-0.5 | -- | -- | -- | -- | -- | -- |
W | -- | -- | -- | 1.4-1.8 | -- | 0.2-1 | -- |
Zr | -- | ≤0.15 | ≤0.15 | -- | -- | -- | -- |
Pb | -- | -- | ≤0.002 | -- | -- | -- | -- |
Ce | -- | -- | -- | ≤0.05 | -- | -- | -- |
Size Range | |
Wire | 0.5-7.5mm |
Rod/Bar | 8.0-200mm |
Strip | (0.50-2.5)*(5-180)mm |
Tube | custom made |
| Plate | custom made |
Exceptional High-Temperature Performance: With a maximum operating temperature of up to 950°C, Nimonic 90 performs well in environments where other alloys might fail.
Superior Corrosion Resistance: The alloy is highly resistant to oxidation and corrosion, even in the most aggressive environments.
High Strength and Durability: Excellent mechanical properties under high thermal stress make it ideal for demanding applications such as turbine engines and power generation.
Flexibility in Manufacturing: Nimonic 90 can be processed into thin strips, making it versatile for use in a wide range of components.
Long Service Life: Due to its high resistance to thermal fatigue and creep, Nimonic 90 ensures a longer operational life in critical applications.
Customization Available: We offer customization of dimensions, alloy grades, and coatings based on specific project requirements.
Fast Delivery: Efficient and reliable shipping options ensure timely delivery for urgent projects.
Technical Support: Our engineering team is available to provide expert advice and technical support for your specific application needs.

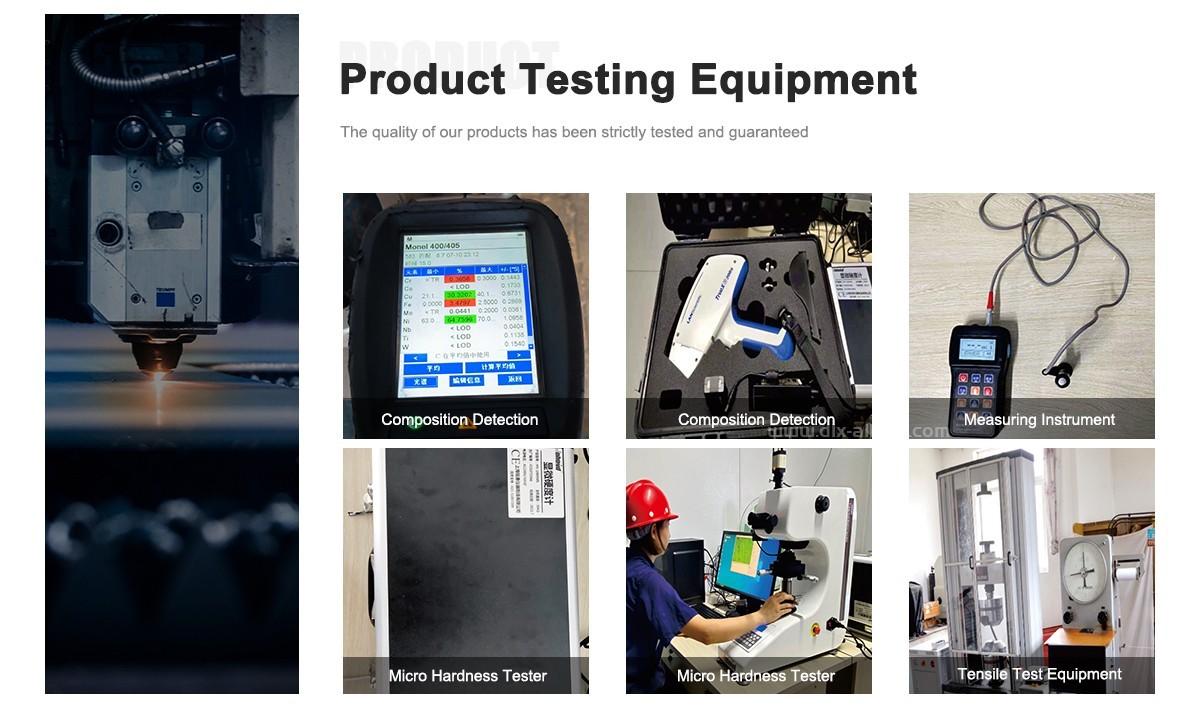

Quality Assurance: All products undergo rigorous quality checks and testing to ensure they meet industry standards.
After-Sales Support: Dedicated customer service team available to assist with any issues post-purchase.
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, Precision Alloy , FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
