High Durability Incoloy 925 Alloy Wire for Industrial Heat Exchangers and Thermal Processing

1. Product Information‌

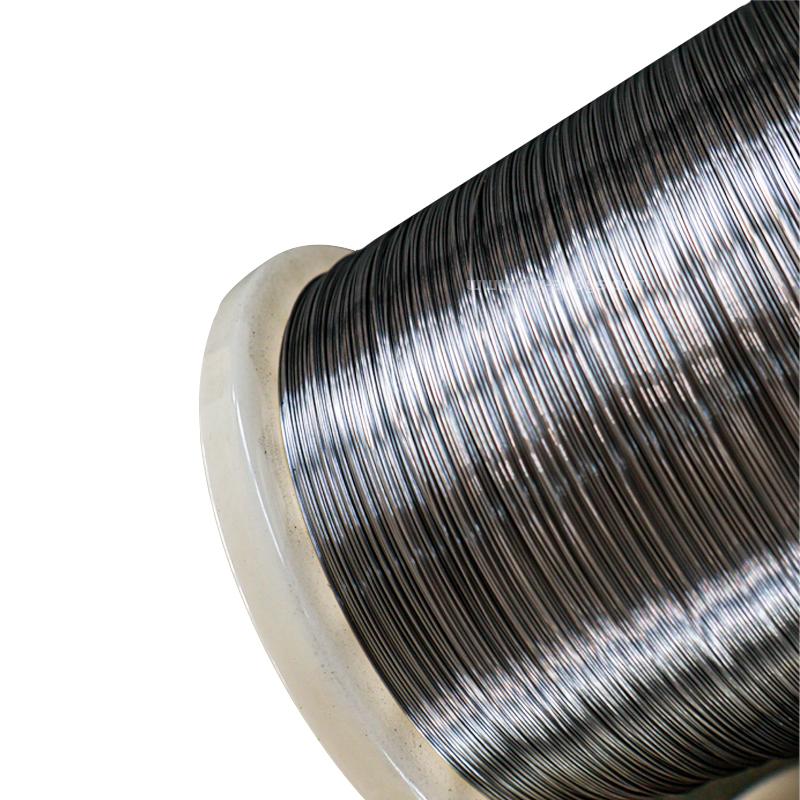

‌Product Name‌: Incoloy 925 Wire
‌Material Type‌: Nickel-Iron-Chromium Superalloy (Age-Hardenable, Sulfide Stress Corrosion Resistant)
‌Standards‌: ASTM B425, AMS 5827, UNS N09925, DIN 2.4852
‌Forms Available‌: Round wire, flat wire, spooled wire, and custom-drawn profiles.
‌Diameter Range‌: 0.15 mm to 12.5 mm (customizable upon request).
‌Surface Finish‌: Bright annealed, pickled, or electro-polished.
Operating Temperature‌:

• Continuous service: -200°C to 450°C

• Short-term exposure: Up to 650°C

‌Certifications‌: Compliant with NACE MR-0175/ISO 15156 (Sour Service), API 6A, and ASME SB425.

‌2. Characteristics‌

Incoloy 925 wire is an age-hardenable superalloy optimized for extreme mechanical strength and corrosion resistance in aggressive environments:

• ‌High Strength‌: Achieves 1100-1450 MPa tensile strength after cold working and aging, surpassing Inconel 718 in chloride-rich conditions.

• ‌Sulfide Stress Corrosion Cracking (SSCC) Resistance‌: Mo-Cu-Ti synergy prevents cracking in H₂S-containing environments (NACE Level VII compliance).

• ‌Acid Resistance‌: Resists sulfuric, phosphoric, and hydrochloric acids due to Ni-Cr-Mo matrix.

• ‌Thermal Stability‌: Retains 85% of room-temperature strength at 400°C.

• ‌Fatigue Resistance‌: Endurance limit of 550 MPa (10⁷ cycles) in seawater.

• ‌Fabrication Flexibility‌: Compatible with cold heading, machining, and TIG welding.

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Vacuum Induction Melting (VIM) + Vacuum Arc Remelting (VAR)‌: Ensures ultra-low gas content (O₂ < 30 ppm, N₂ < 50 ppm).

• ‌Thermomechanical Processing‌:

• Hot rolling at 950-1150°C to break down cast structures.

• Cold drawing with 20-50% reduction for strain hardening.

• ‌Heat Treatment‌:

• Solution annealing at 980-1010°C followed by water quenching.

• Aging at 620-650°C for 16 hours to precipitate γ' (Ni₃(Ti,Al)) strengthening phases.

• ‌Surface Engineering‌: Electropolishing (Ra < 0.5 μm) for enhanced pitting resistance.

‌Quality Control‌:

• Inductively coupled plasma optical emission spectrometry (ICP-OES) for trace element verification.

• Hydrogen embrittlement testing per ASTM F519.

• Stress corrosion cracking (SCC) testing in boiling 42% MgCl₂ solution per ASTM G36.

‌4. Theory‌

The alloy’s exceptional properties derive from its advanced metallurgical design:

• ‌Age-Hardening Mechanism‌: Ti and Al form coherent Ni₃(Ti,Al) precipitates during aging, creating lattice strain fields that block dislocation motion.

• ‌Molybdenum-Copper Synergy‌: Mo enhances chloride SCC resistance, while Cu improves reducing acid corrosion via cathodic polarization.

• ‌Grain Boundary Engineering‌: Controlled Ti/C ratio prevents M₂₃C₆ carbide formation at grain boundaries, eliminating sensitization risks.

• ‌Nickel Matrix Dominance‌: High Ni content stabilizes austenite and ensures ductility at cryogenic temperatures.

• ‌Hydrogen Embrittlement Mitigation‌: Low C content (<0.03%) and Ti scavenging minimize hydrogen trap sites.

‌5. Application‌

Incoloy 925 wire is critical in industries requiring simultaneous high strength and corrosion resistance:

• ‌Oil & Gas‌:

• Downhole wireline cables, subsurface safety valve springs, and sour gas wellhead fasteners.

• Wire-reinforced hoses for acid stimulation (15-28% HCl environments).

• ‌Marine Engineering‌:

• Mooring lines for deep-sea platforms, seawater pump shafts, and subsea connector pins.

• ‌Chemical Processing‌:

• Coil springs in hydrochloric acid reactors and wire mesh for phosphoric acid concentrators.

• ‌Aerospace‌:

• High-stress fasteners for jet engine nacelles and fuel system components.

• ‌Nuclear‌:

• Control rod drive mechanisms and reactor coolant system springs.




6. Parameters
