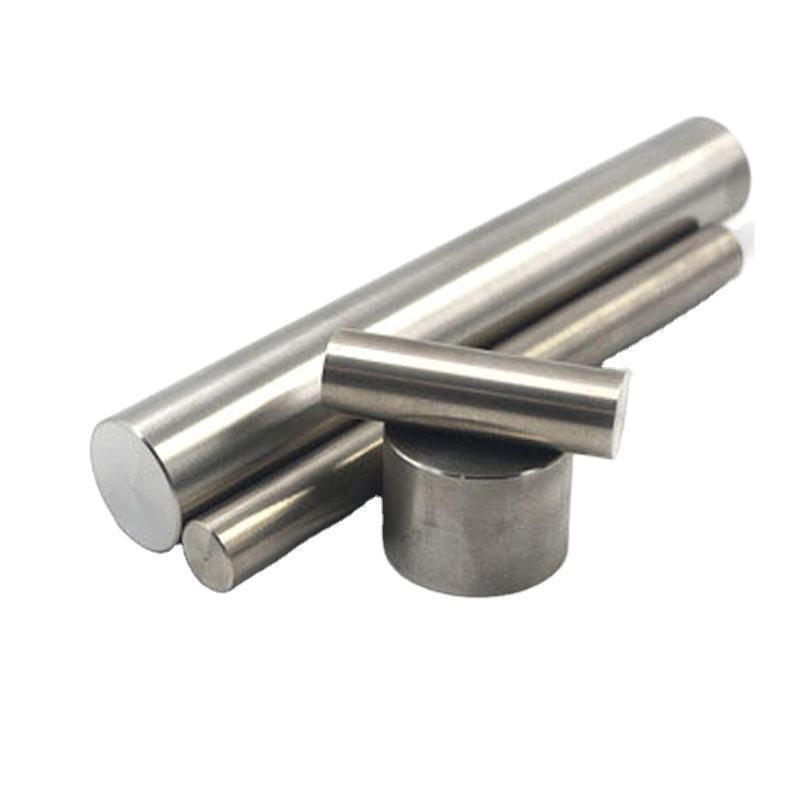

Durable Incoloy 800H Alloy Bar for High Temperature Boilers and Power Plant Equipment

1. Product Information‌

‌Product Name‌: Incoloy 800H Bar (High-Temperature Creep-Resistant Grade)
‌Material Type‌: Nickel-Iron-Chromium Superalloy (Austenitic, High-Carbon Variant)
‌Standards‌: ASTM B408, ASME SB408, AMS 5766, UNS N08810, DIN 1.4958
‌Forms Available‌: Hot-rolled bars, forged bars, and cold-finished precision ground bars.
‌Diameter Range‌: 10 mm to 300 mm (customizable up to 500 mm for forged applications).
‌Surface Finish‌: Black oxide, turned, ground (Ra ≤ 0.6 μm), or electropolished.
Operating Temperature‌:

• Continuous service: Up to 925°C (1700°F)

• Short-term exposure: 1150°C (2100°F) for <100 hours

Certifications‌: ASME Section VIII Div.1, PED 2014/68/EU, NACE MR-0175 for sour gas environments.

‌2. Characteristics‌

Incoloy 800H bars are engineered for extreme thermal stability and mechanical resilience in aggressive industrial environments:

• ‌Superior Creep Rupture Strength‌: Achieves 10,000-hour rupture life at 800°C/35 MPa, outperforming standard Incoloy 800 by 40%.

• ‌Oxidation Resistance‌: Forms a dual-layer Cr₂O₃-Al₂O₃ oxide scale with oxidation rates <0.1 g/m²·h at 900°C in air.

• ‌Carburization Resistance‌: Limits carbon penetration to <0.5 mm after 20,000 hours in hydrocarbon atmospheres (ac₃ <0.3).

• ‌Thermal Fatigue Resistance‌: Thermal expansion coefficient of 14.5 μm/m·°C (20–600°C) minimizes stress during cyclic heating.

• ‌Phase Stability‌: No sigma-phase formation even after 15,000 hours at 850°C, retaining 25% elongation.

• ‌Weldability‌: Compatible with TIG and laser welding (AWS A5.14 ERNiCr-3 filler recommended).

‌3. Technology‌

‌Manufacturing Process‌:

• ‌Vacuum Induction Melting (VIM)‌: Ensures ultra-low impurities (S < 0.005%, P < 0.015%).

• ‌Hot Forging‌: Performed at 1100-1200°C to achieve ASTM grain size 3-5.

• ‌Heat Treatment‌:

• Solution annealing at 1175-1200°C (2150-2200°F) with rapid argon quenching.

• Stabilization annealing at 850°C (1560°F) for 4 hours to optimize carbide distribution.
  ‌Quality Control‌:

• Ultrasonic testing (UT) per ASTM A388 to detect internal flaws >1 mm.

• High-temperature tensile testing per ASTM E21 at 800°C.

• Electron backscatter diffraction (EBSD) for grain orientation analysis.

‌4. Theory‌

The alloy’s performance is governed by its unique metallurgical architecture:

• ‌Carbon-Enhanced Strengthening‌: Controlled C content promotes (Ti,Al)C intragranular carbides that pin dislocations and delay creep void nucleation.

• ‌Aluminum-Chromium Synergy‌: Al enhances oxide layer adhesion, while Cr ensures rapid repassivation in oxidizing atmospheres.

• ‌Nickel Matrix Stability‌: High Ni content suppresses ferrite formation, maintaining austenitic ductility under thermal cycling.

• ‌Grain Boundary Engineering‌: Coarse grain structure (ASTM 3-5) reduces grain boundary sliding at >800°C.

• ‌Dynamic Recrystallization‌: Hot working parameters refine grain boundaries, improving fracture toughness by 15% over cast equivalents.

‌5. Application‌

Incoloy 800H bars are critical in industries requiring prolonged high-temperature operation:

• ‌Petrochemical‌:

• Ethylene cracking furnace tubes, reformer headers, and pyrolysis coil hangers.

• Support grids for hydrocracker reactors (operating at 750°C/70 bar).

• ‌Power Generation‌:

• Steam turbine bolts, superheater tube hangers, and boiler baffle plates.

• Gas turbine combustor liners and exhaust ducting.

• ‌Heat Treatment‌:

• Fixtures for carburizing furnaces (950°C) and sintering furnace trays.

• ‌Chemical Processing‌:

• Reactor agitator shafts in nitric acid production and chlorine gas preheaters.
